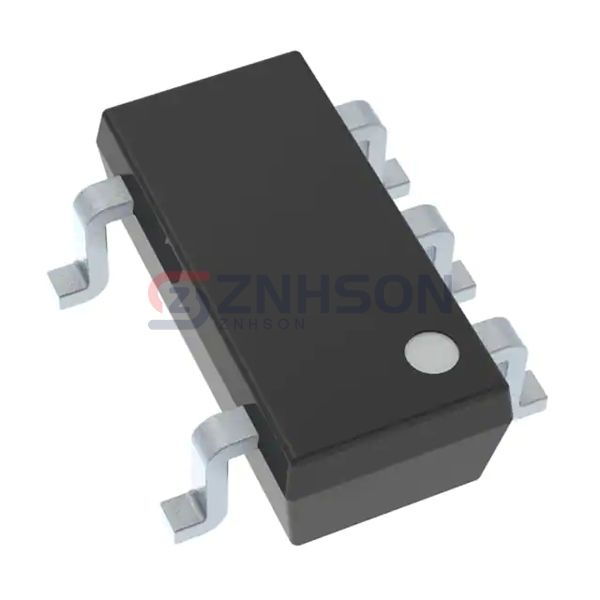

MC74HC1G00DBVT1G
onsemi
onsemi
IC GATE NAND 1CH 2-INP SC74A
$0.03
Available to order
Reference Price (USD)
1+
$0.03400
500+
$0.03366
1000+
$0.03332
1500+
$0.03298
2000+
$0.03264
2500+
$0.0323
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience reliable digital logic performance with onsemi's MC74HC1G00DBVT1G, a key component in our Logic - Gates and Inverters selection. This IC features buffered outputs for improved drive capability and reduced signal distortion. Technical highlights include 5ns maximum propagation delay and 24mA output drive at 5V. The MC74HC1G00DBVT1G serves critical functions in computer architecture, including address decoding, bus interfacing, and memory control. Real-world applications encompass point-of-sale terminals, industrial HMI panels, and automotive dashboard electronics. With its moisture sensitivity level (MSL) rating of 1, this component is suitable for demanding production environments and extended storage periods.
Specifications
- Product Status: Obsolete
- Logic Type: NAND Gate
- Number of Circuits: 1
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 2V ~ 6V
- Current - Quiescent (Max): 1 µA
- Current - Output High, Low: 2.6mA, 2.6mA
- Logic Level - Low: 0.5V ~ 1.8V
- Logic Level - High: 1.5V ~ 4.2V
- Max Propagation Delay @ V, Max CL: 17ns @ 6V, 50pF
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: SC-74A
- Package / Case: SC-74A, SOT-753
Related Products
Toshiba Semiconductor and Storage
7UL1T32FU,LF
Nexperia USA Inc.
74AUP1G386GM,115
Harris Corporation
CD74HCT86EX
onsemi
NLV14082BDR2G
Texas Instruments
CD74HC4002MT
NXP USA Inc.

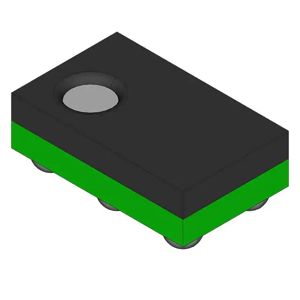

74LV00U/C029
