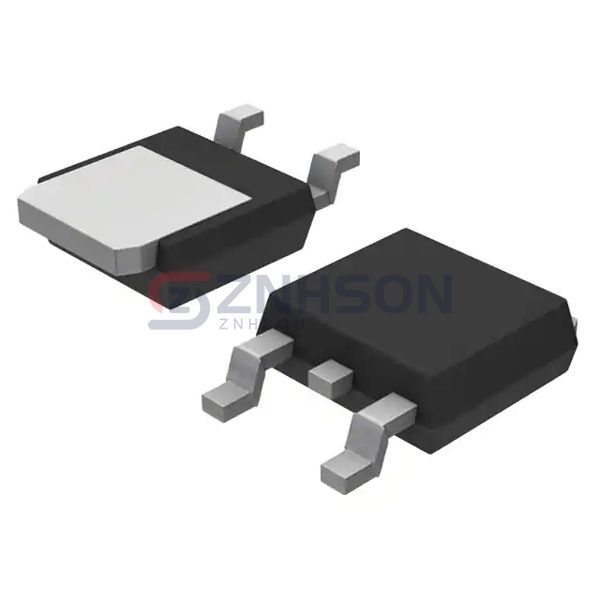

MC7805BDTRKG
onsemi
onsemi
IC REG LINEAR 5V 1A DPAK
$0.60
Available to order
Reference Price (USD)
2,500+
$0.22063
5,000+
$0.20639
12,500+
$0.19216
25,000+
$0.18220
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
onsemi's MC7805BDTRKG represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the MC7805BDTRKG are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 35V
- Voltage - Output (Min/Fixed): 5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 2V @ 1A (Typ)
- Current - Output: 1A
- Current - Quiescent (Iq): 8 mA
- Current - Supply (Max): -
- PSRR: 68dB (120Hz)
- Control Features: -
- Protection Features: Over Temperature, Short Circuit
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: DPAK
Related Products
Texas Instruments
TPS77733DR
Texas Instruments
TPS75933KTTR
Nisshinbo Micro Devices Inc.
RP106K131D-TR
onsemi
NCV8501PDW33R2
Microchip Technology
MIC5216-3.3YM5-TR
onsemi
SZ2570-30T3
onsemi
NCP5661MN30T2G
ABLIC Inc.
S-812C32BMC-C4MT2G
STMicroelectronics

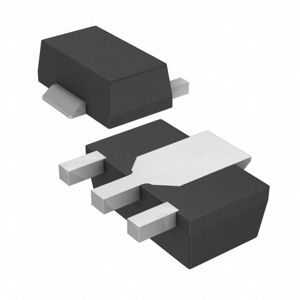

LDK320AU50R
