MCAC25P10YHE3-TP
Micro Commercial Co
Micro Commercial Co

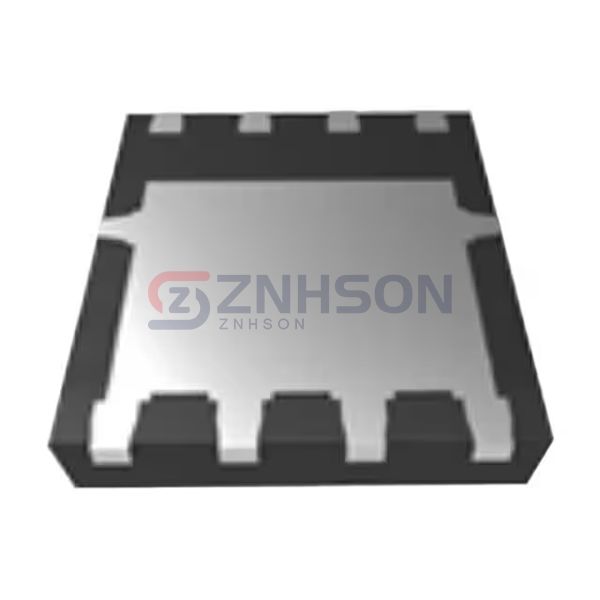

P-CHANNEL MOSFET, DFN5060
$1.60
Available to order
Reference Price (USD)
1+
$1.60000
500+
$1.584
1000+
$1.568
1500+
$1.552
2000+
$1.536
2500+
$1.52
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MCAC25P10YHE3-TP single MOSFET from Micro Commercial Co is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the MCAC25P10YHE3-TP is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 25A
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 55mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 40 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2200 pF @ 50 V
- FET Feature: -
- Power Dissipation (Max): 70W (Tj)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN5060
- Package / Case: 8-PowerTDFN
