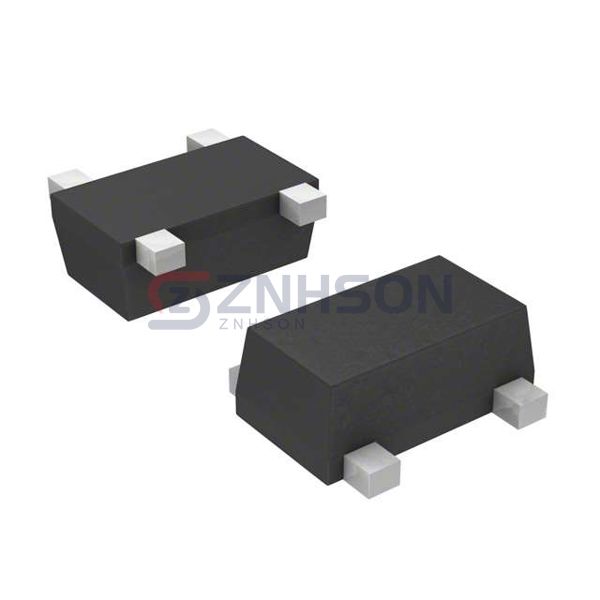

MCH4009-TL-H
onsemi
onsemi
RF TRANS NPN 3.5V 25GHZ 4MCPH
$0.44
Available to order
Reference Price (USD)
3,000+
$0.14648
6,000+
$0.13703
15,000+
$0.12758
30,000+
$0.12600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MCH4009-TL-H from onsemi is a high-performance RF Bipolar Junction Transistor (BJT) designed for demanding applications in the Discrete Semiconductor Products category. This transistor excels in radio frequency (RF) amplification, offering exceptional gain and low noise characteristics. With its robust construction and reliable performance, the MCH4009-TL-H is ideal for use in communication systems, RF modules, and signal processing circuits. Key features include high transition frequency, excellent thermal stability, and low distortion, making it a top choice for engineers and designers. Applications include wireless communication devices, radar systems, and RF transceivers. Trust onsemi for superior quality and innovation in RF BJT technology.
Specifications
- Product Status: Active
- Transistor Type: NPN
- Voltage - Collector Emitter Breakdown (Max): 3.5V
- Frequency - Transition: 25GHz
- Noise Figure (dB Typ @ f): 1.1dB @ 2GHz
- Gain: 13.5dB
- Power - Max: 120mW
- DC Current Gain (hFE) (Min) @ Ic, Vce: 50 @ 5mA, 1V
- Current - Collector (Ic) (Max): 40mA
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-343F
- Supplier Device Package: 4-MCPH
Related Products
Fairchild Semiconductor
MMBTH10
Infineon Technologies
BFP740ESDH6327XTSA1
Fairchild Semiconductor
MPSH11
Infineon Technologies
BFP720H6327
NXP USA Inc.

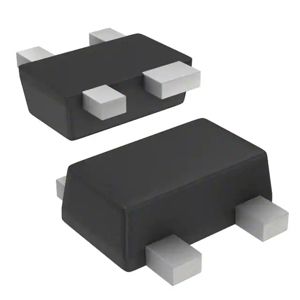

ON5089,115
MACOM Technology Solutions

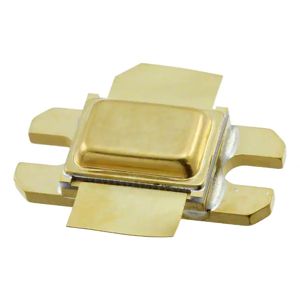

PH1090-550S
NXP USA Inc.

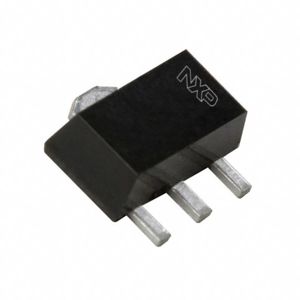

BFQ18A,115
Infineon Technologies

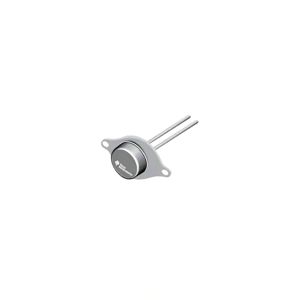

BFP640E6327
NTE Electronics, Inc

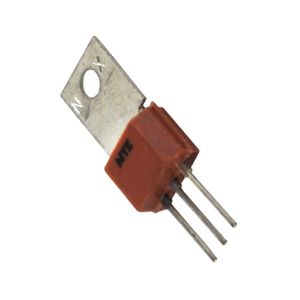

NTE299
