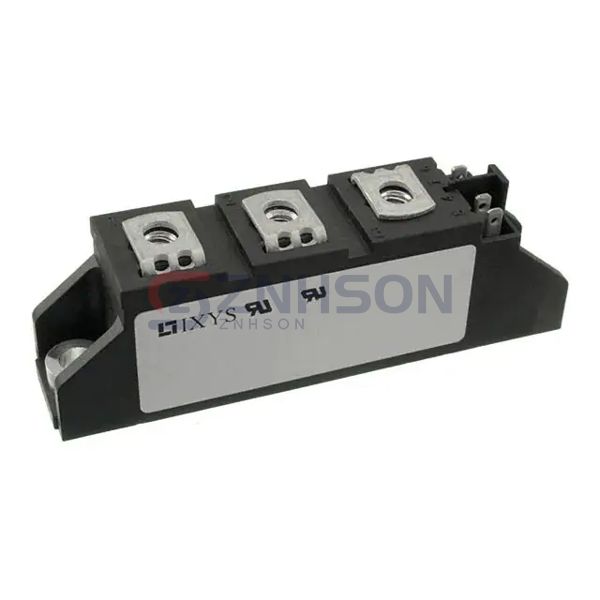

MCNA120PD2200TB-NI
IXYS
IXYS
BIPOLAR MODULE THYRISTOR/DIODE T
$48.49
Available to order
Reference Price (USD)
1+
$48.49444
500+
$48.0094956
1000+
$47.5245512
1500+
$47.0396068
2000+
$46.5546624
2500+
$46.069718
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic designs with the MCNA120PD2200TB-NI Thyristors - SCRs - Modules from IXYS. These discrete semiconductor products are tailored for high-current and high-voltage applications, offering superior control and protection. Commonly used in power distribution, battery charging, and traction systems, these modules provide the reliability and precision needed for critical operations. IXYS's expertise in semiconductor technology guarantees products that meet rigorous performance standards. Choose these SCR modules for your next project and experience unmatched quality and durability.
Specifications
- Product Status: Active
- Structure: Series Connection - SCR/Diode
- Number of SCRs, Diodes: 1 SCR, 1 Diode
- Voltage - Off State: 2.2 kV
- Current - On State (It (AV)) (Max): 120 A
- Current - On State (It (RMS)) (Max): 190 A
- Voltage - Gate Trigger (Vgt) (Max): 1.5 V
- Current - Gate Trigger (Igt) (Max): 150 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 2200A, 2380A
- Current - Hold (Ih) (Max): 150 mA
- Operating Temperature: -40°C ~ 140°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: TO-240AA
Related Products
Powerex Inc.
T720165504DN
Vishay General Semiconductor - Diodes Division
VS-T70RIA60
Infineon Technologies
TD120N16SOFHPSA1
Sensata-Crydom
L614F
Vishay General Semiconductor - Diodes Division

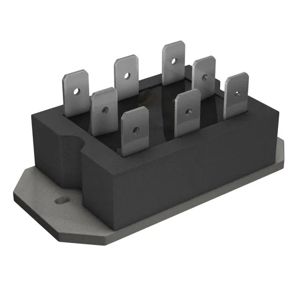

VS-P131
IXYS

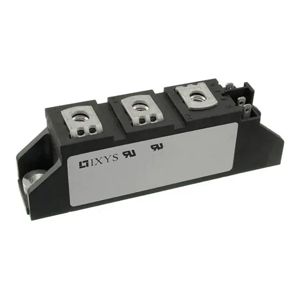

MCMA85P1600TA
Vishay General Semiconductor - Diodes Division
VS-VSKT162/12PBF
Vishay General Semiconductor - Diodes Division

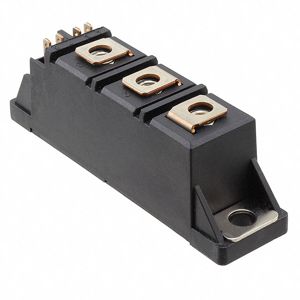

VS-VSKH105/04
