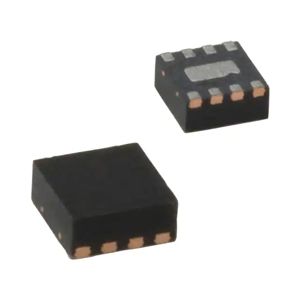

MCP1407-E/MF
Microchip Technology
Microchip Technology
IC GATE DRVR LOW-SIDE 8DFN
$1.53
Available to order
Reference Price (USD)
1+
$1.53000
500+
$1.5147
1000+
$1.4994
1500+
$1.4841
2000+
$1.4688
2500+
$1.4535
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MCP1407-E/MF PMIC - Gate Driver by Microchip Technology sets new benchmarks for intelligent power device control. As part of the ICs family, this solution incorporates digital input interfaces (PWM, SPI) alongside analog fault monitoring pins. Its standout attributes are: 1) 12ns typical propagation delay matching, 2) -40 C to +150 C junction temperature range, and 3) configurable soft-turnoff during overcurrent events. Dominant market applications encompass 5G base station PAs, MRI gradient amplifiers, and hydrogen fuel cell converters. A case in point: Siemens' latest wind turbine converters leverage MCP1407-E/MF-equivalent drivers to achieve 99.2% availability in offshore conditions, thanks to conformal coating against salt spray corrosion.
Specifications
- Product Status: Active
- Driven Configuration: Low-Side
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: IGBT, N-Channel, P-Channel MOSFET
- Voltage - Supply: 4.5V ~ 18V
- Logic Voltage - VIL, VIH: 0.8V, 2.4V
- Current - Peak Output (Source, Sink): 6A, 6A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 20ns, 20ns
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-VDFN Exposed Pad
- Supplier Device Package: 8-DFN-S (6x5)
Related Products
Microchip Technology
MIC4425BN
Diodes Incorporated
ZXGD3001E6QTA
Microchip Technology
TC1427CPA
Infineon Technologies
IR2214SSTRPBF
Microchip Technology
MCP14E9T-E/SN
Analog Devices Inc./Maxim Integrated
MAX15019AASA+
Microchip Technology
TC426MJA
Microchip Technology

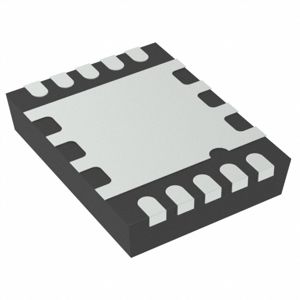

HT0440K6-G
