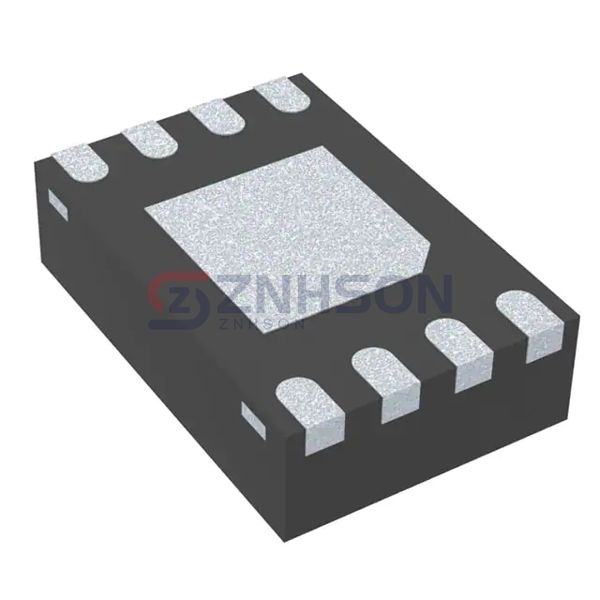

MCP1725-0802E/MC

Microchip Technology

Manufacturer

Microchip Technology

Description:

IC REG LINEAR 0.8V 500MA 8DFN

Datasheet:

MCP1725-0802E/MC Datasheet

$0.73

Available to order

Reference Price (USD)

$0.73000

500+

$0.7227

1000+

$0.7154

1500+

$0.7081

2000+

$0.7008

2500+

$0.6935

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the MCP1725-0802E/MC linear voltage regulator IC by Microchip Technology, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this MCP1725-0802E/MC model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 6V
Voltage - Output (Min/Fixed): 0.8V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.35V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 220 µA
Current - Supply (Max): -
PSRR: 60dB (100Hz)
Control Features: Enable, Power Good
Protection Features: Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 8-VFDFN Exposed Pad
Supplier Device Package: 8-DFN (2x3)
