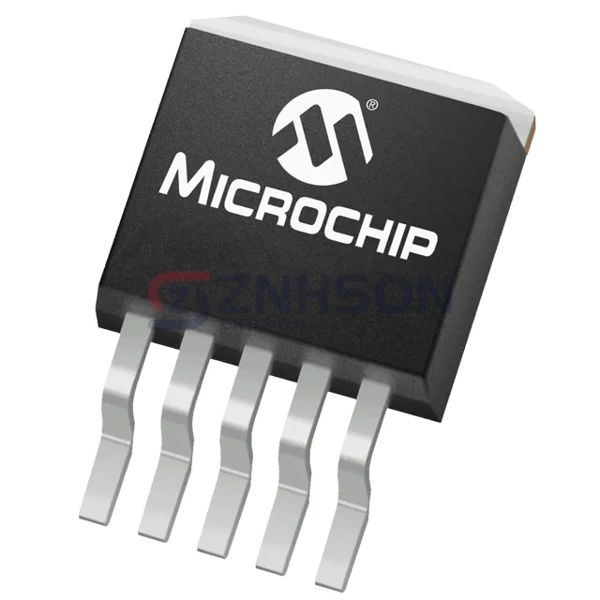

MCP1825-3302E/ET

Microchip Technology

Manufacturer

Microchip Technology

Description:

IC REG LINEAR 3.3V 500MA 5DDPAK

Datasheet:

MCP1825-3302E/ET Datasheet

$1.12

Available to order

Reference Price (USD)

$1.12000

500+

$1.1088

1000+

$1.0976

1500+

$1.0864

2000+

$1.0752

2500+

$1.064

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The MCP1825-3302E/ET by Microchip Technology is a high-efficiency PMIC - Voltage Regulators - Linear IC designed to meet the needs of today's advanced electronic systems. This IC offers superior voltage regulation with features like fast transient response, low noise, and high accuracy. Its robust construction ensures long-term reliability, making it a perfect fit for both commercial and industrial applications. In the PMIC - Voltage Regulators - Linear category, the MCP1825-3302E/ET stands out for its ability to handle varying load conditions without compromising performance. It provides excellent line regulation and low quiescent current, which are essential for energy-efficient designs. Additionally, its built-in protection mechanisms safeguard against over-voltage and short-circuit conditions. The MCP1825-3302E/ET is employed in diverse fields, including medical imaging, consumer electronics, and military equipment. For instance, it is used in MRI machines, high-end audio systems, and defense communication devices. Its versatility and dependable performance make it a cornerstone in modern electronic engineering.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 6V
Voltage - Output (Min/Fixed): 3.3V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.35V @ 500mA
Current - Output: 500mA
Current - Quiescent (Iq): 220 µA
Current - Supply (Max): -
PSRR: 60dB (100Hz)
Control Features: Enable, Power Good
Protection Features: Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package: 5-DDPAK
