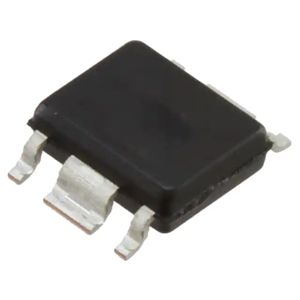

MCP1826ST-3002E/DB

Microchip Technology

Manufacturer

Microchip Technology

Description:

IC REG LINEAR 3V 1A SOT223-3

Datasheet:

MCP1826ST-3002E/DB Datasheet

$0.90

Available to order

Reference Price (USD)

4,000+

$0.53560

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Microchip Technology's MCP1826ST-3002E/DB represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the MCP1826ST-3002E/DB are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.

Specifications

Product Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 6V
Voltage - Output (Min/Fixed): 3V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.4V @ 1A
Current - Output: 1A
Current - Quiescent (Iq): 220 µA
Current - Supply (Max): -
PSRR: 60dB (100Hz)
Control Features: -
Protection Features: Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: TO-261-4, TO-261AA
Supplier Device Package: SOT-223-3
