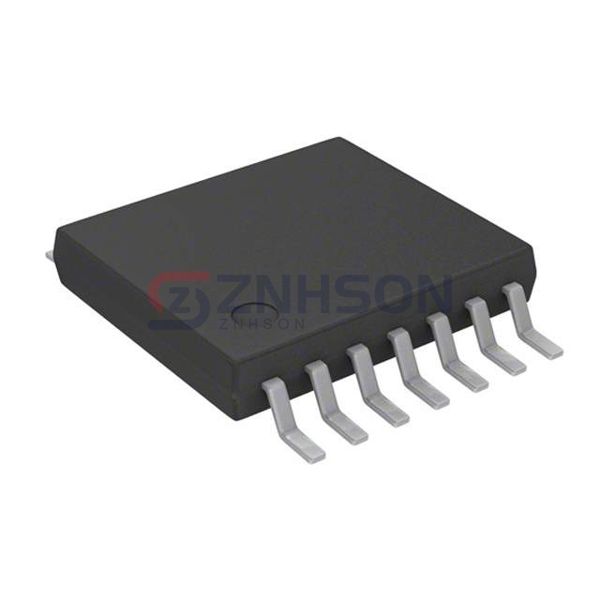

MCP2022PT-500E/ST
Microchip Technology
Microchip Technology
IC TRANSCEIVER HALF 1/1 14TSSOP
$1.86
Available to order
Reference Price (USD)
2,500+
$1.22571
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's MCP2022PT-500E/ST represents the cutting edge of Interface IC technology, specifically engineered for the Drivers, Receivers, Transceivers market segment. This versatile component combines driver and receiver functions in a compact package, offering both voltage level shifting and signal amplification capabilities. With its wide operating voltage range (3V to 5.5V) and ESD protection exceeding 8kV, this IC is ideal for harsh industrial environments. Common implementations include PLC systems, motor control units, and building automation where reliable serial communication is critical. The MCP2022PT-500E/ST particularly shines in multi-drop network configurations common in factory automation setups.
Specifications
- Product Status: Active
- Type: Transceiver
- Protocol: LINbus
- Number of Drivers/Receivers: 1/1
- Duplex: Half
- Receiver Hysteresis: 175 mV
- Data Rate: -
- Voltage - Supply: 6V ~ 18V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 14-TSSOP
Related Products
Texas Instruments
AM26LV31INSR
Analog Devices Inc./Maxim Integrated

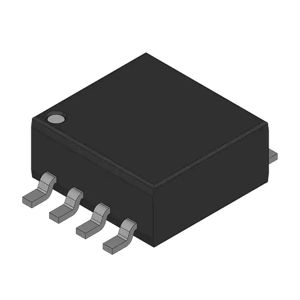

MAX485CUA
Texas Instruments

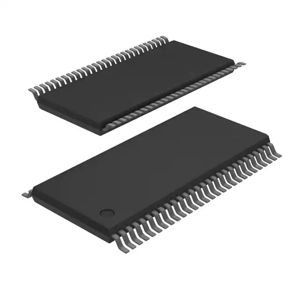

SN75976A2DGGR
Analog Devices Inc./Maxim Integrated
MAX3243CWI+
Texas Instruments

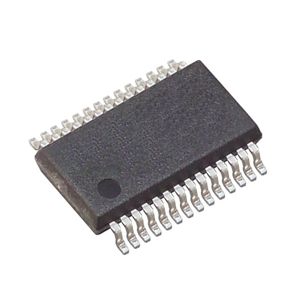

TRS3243ECDBR
Texas Instruments
DS90C032TM/NOPB
Analog Devices Inc./Maxim Integrated
MAX3460ESD
Texas Instruments

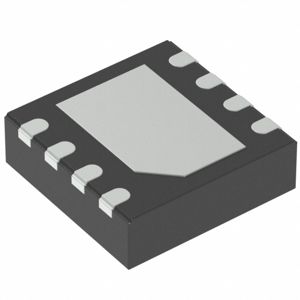

TLIN1029DRBTQ1
