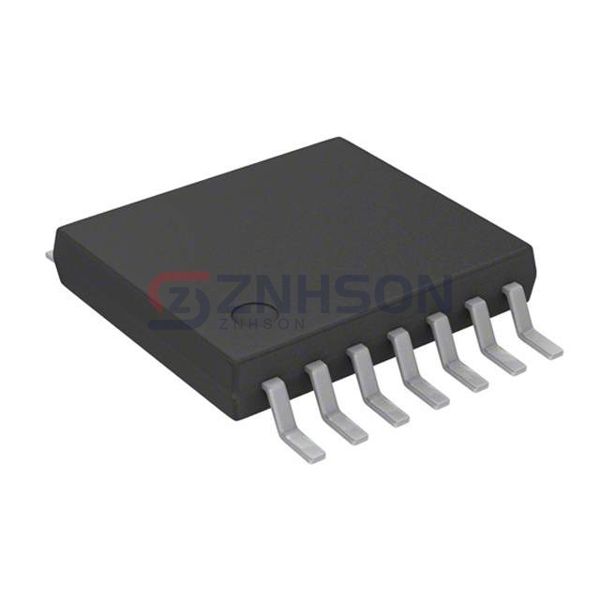

MCP6564T-E/ST
Microchip Technology
Microchip Technology
IC COMP QUAD 1.8V PP 14-TSSOP
$1.89
Available to order
Reference Price (USD)
1+
$1.89000
500+
$1.8711
1000+
$1.8522
1500+
$1.8333
2000+
$1.8144
2500+
$1.7955
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's MCP6564T-E/ST represents the cutting edge of Linear - Comparator technology. This IC classification specializes in ultra-fast signal comparison with nanosecond response times, coupled with outstanding noise immunity. Designers benefit from features like open-drain outputs and wide operating temperature ranges (-40 C to 125 C). Primary use cases encompass threshold detection in security systems, pulse-width modulation for power electronics, and zero-crossing detection in audio equipment. A notable example is the MCP6564T-E/ST's implementation in solar inverters, where accurate DC voltage comparison ensures maximum power point tracking efficiency.
Specifications
- Product Status: Active
- Type: General Purpose
- Number of Elements: 4
- Output Type: CMOS, Push-Pull, Rail-to-Rail, TTL
- Voltage - Supply, Single/Dual (±): 1.8V ~ 5.5V
- Voltage - Input Offset (Max): 10mV @ 5.5V
- Current - Input Bias (Max): 1pA @ 5.5V
- Current - Output (Typ): 50mA
- Current - Quiescent (Max): 130µA
- CMRR, PSRR (Typ): 66dB CMRR, 70dB PSRR
- Propagation Delay (Max): 80ns
- Hysteresis: 5mV
- Operating Temperature: -40°C ~ 125°C
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
- Mounting Type: Surface Mount
- Supplier Device Package: 14-TSSOP
