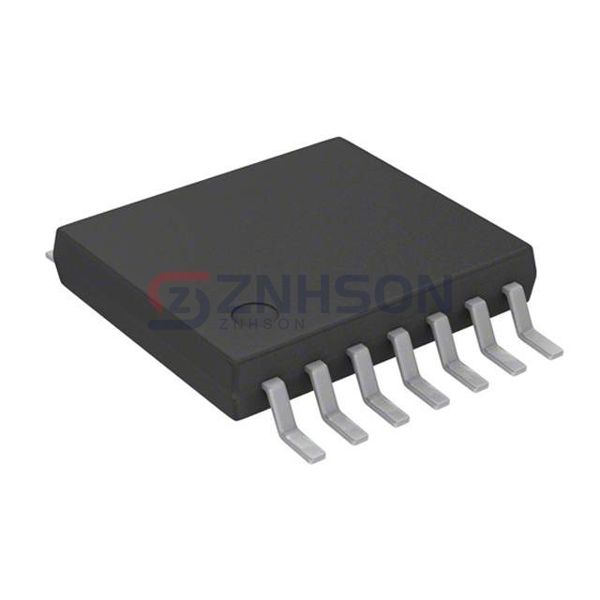

MCP6569-E/ST
Microchip Technology
Microchip Technology
IC COMP QUAD 1.8V OD 14-TSSOP
$1.89
Available to order
Reference Price (USD)
1+
$1.89000
500+
$1.8711
1000+
$1.8522
1500+
$1.8333
2000+
$1.8144
2500+
$1.7955
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MCP6569-E/ST Linear - Comparator by Microchip Technology redefines signal processing efficiency. These ICs combine high-speed operation with ultra-low quiescent current, perfect for energy-sensitive applications. Notable characteristics include programmable hysteresis and shutdown modes for power savings. They're widely adopted in consumer electronics for touch panel interfaces, in automotive for adaptive lighting control, and in industrial settings for PLC input modules. The MCP6569-E/ST is particularly effective in smart home systems, where it enables precise temperature threshold detection for HVAC control with minimal power consumption.
Specifications
- Product Status: Active
- Type: General Purpose
- Number of Elements: 4
- Output Type: CMOS, Open-Drain
- Voltage - Supply, Single/Dual (±): 1.8V ~ 5.5V
- Voltage - Input Offset (Max): 10mV @ 5.5V
- Current - Input Bias (Max): 1pA @ 5.5V
- Current - Output (Typ): 50mA
- Current - Quiescent (Max): 130µA
- CMRR, PSRR (Typ): 66dB CMRR, 70dB PSRR
- Propagation Delay (Max): 80ns
- Hysteresis: 5mV
- Operating Temperature: -40°C ~ 125°C
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
- Mounting Type: Surface Mount
- Supplier Device Package: 14-TSSOP
