MCR12DSNT4G
Littelfuse Inc.
Littelfuse Inc.
SCR 800V 12A DPAK
$1.03
Available to order
Reference Price (USD)
2,500+
$0.39073
5,000+
$0.36601
12,500+
$0.35364
25,000+
$0.34127
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MCR12DSNT4G from Littelfuse Inc. redefines reliability in the Thyristors - SCRs category of Discrete Semiconductor Products. With its unique reverse blocking capability and high temperature operation range, this SCR is indispensable for power electronics. Typical uses include uninterruptible power supplies, induction heating, and plasma cutting machines. For example, it's essential in semiconductor manufacturing equipment. Littelfuse Inc.'s MCR12DSNT4G combines advanced engineering with practical functionality.
Specifications
- Product Status: Active
- Voltage - Off State: 800 V
- Voltage - Gate Trigger (Vgt) (Max): 1 V
- Current - Gate Trigger (Igt) (Max): 200 µA
- Voltage - On State (Vtm) (Max): 1.9 V
- Current - On State (It (AV)) (Max): 7.6 A
- Current - On State (It (RMS)) (Max): 12 A
- Current - Hold (Ih) (Max): 6 mA
- Current - Off State (Max): 10 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 100A @ 60Hz
- SCR Type: Sensitive Gate
- Operating Temperature: -40°C ~ 110°C
- Mounting Type: Surface Mount

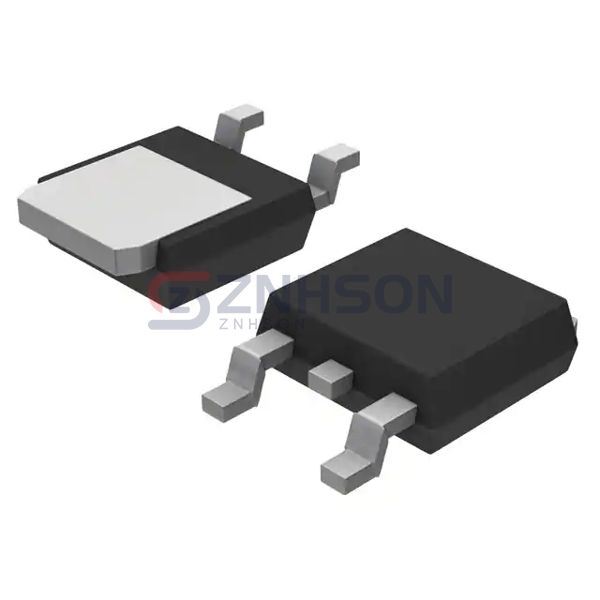

- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: TO-252, (D-Pak)
