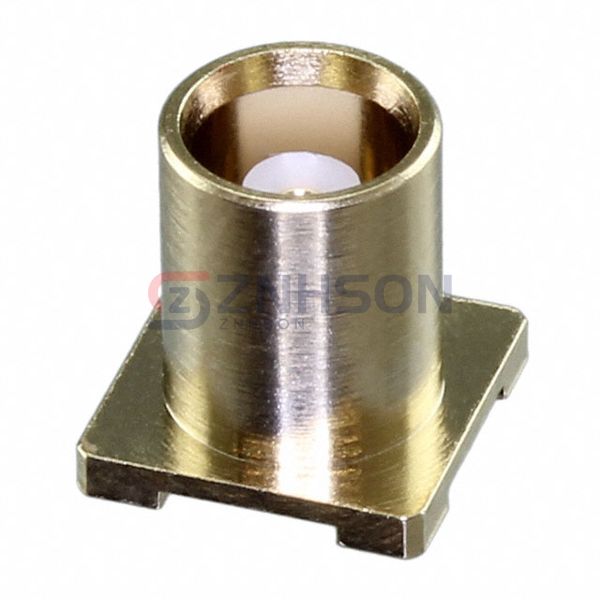

MCX-J-P-H-ST-SM1-TR
Samtec Inc.
Samtec Inc.
CONN MCX JACK STR 50 OHM SMD
$5.25
Available to order
Reference Price (USD)
1+
$5.25000
500+
$5.1975
1000+
$5.145
1500+
$5.0925
2000+
$5.04
2500+
$4.9875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MCX-J-P-H-ST-SM1-TR from Samtec Inc. represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The MCX-J-P-H-ST-SM1-TR variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: MCX
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Surface Mount
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 6 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
Related Products
TE Connectivity AMP Connectors
1059632-1
RF Industries
RF123-7050-1B
Linx Technologies Inc.
CONMMCX012
Amphenol RF
172138
Amphenol RF

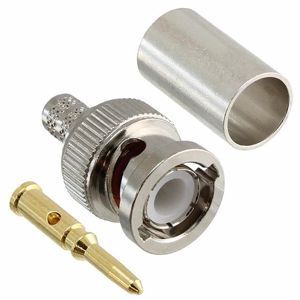

112118
TE Connectivity AMP Connectors

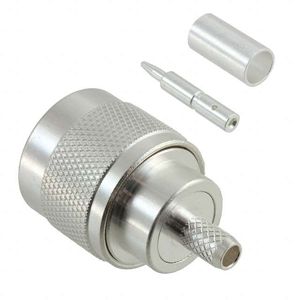

1-1337416-0
Amphenol SV Microwave

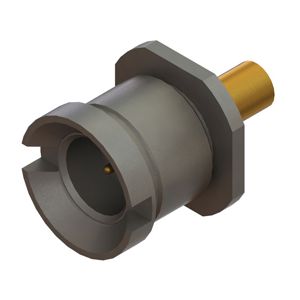

SF1211-6060
Pomona Electronics

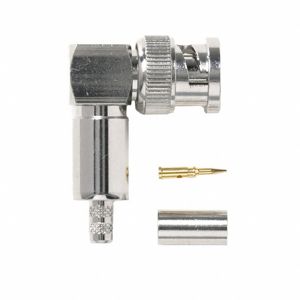

73061
