MCX7-J-P-H-ST-SM1
Samtec Inc.
Samtec Inc.
CONN MCX JACK STR 75 OHM SMT
$4.70
Available to order
Reference Price (USD)
1+
$4.08000
10+
$3.91200
25+
$3.58600
50+
$3.42300
100+
$3.26000
250+
$2.85252
500+
$2.77100
1,000+
$2.36350
2,500+
$2.20050
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Samtec Inc.'s MCX7-J-P-H-ST-SM1 represents the cutting edge of Coaxial Connectors (RF) technology, engineered for precision connectivity in RF and microwave systems. This connector series features innovative contact design that maintains stable electrical performance through thousands of mating cycles. Our RF coaxial connectors are characterized by their weather-resistant construction, making them suitable for both indoor and outdoor installations. Key technical advantages include VSWR <1.25, operating temperature range -55 C to +125 C, and multiple mounting options. These components are extensively used in broadcast equipment (TV/radio transmitters), wireless network infrastructure (small cells, repeaters), military communications systems, and industrial automation controls. The MCX7-J-P-H-ST-SM1 variant specifically addresses the need for compact, high-density interconnects in modern phased array antenna systems.
Specifications
- Product Status: Active
- Connector Style: MCX
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 75Ohm
- Mounting Type: Surface Mount
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 6 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
Related Products
Pasternack
PE45623
Würth Elektronik
61646021110420
Radiall USA, Inc.
9501-1593-010
Amphenol SV Microwave
SF8934-6006
Amphenol Times Microwave Systems
TC-200-MUHF
Radiall USA, Inc.
9079-9513-001
Cinch Connectivity Solutions Johnson
142-1701-121
Amphenol RF
122396
Radiall USA, Inc.

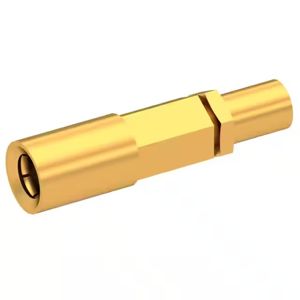

7302-1572-002
