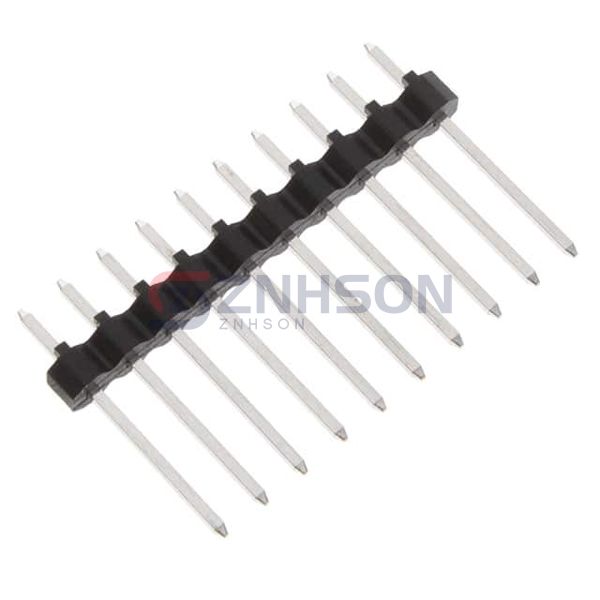

MDF7-10P-2.54DSA(95)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 10POS 2.54MM
$1.10
Available to order
Reference Price (USD)
1+
$1.10000
500+
$1.089
1000+
$1.078
1500+
$1.067
2000+
$1.056
2500+
$1.045
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the MDF7-10P-2.54DSA(95) rectangular connector header from Hirose Electric Co Ltd. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the MDF7-10P-2.54DSA(95) is perfect for automotive, industrial, and consumer electronics. Hirose Electric Co Ltd ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.394" (10.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.612" (15.54mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC
