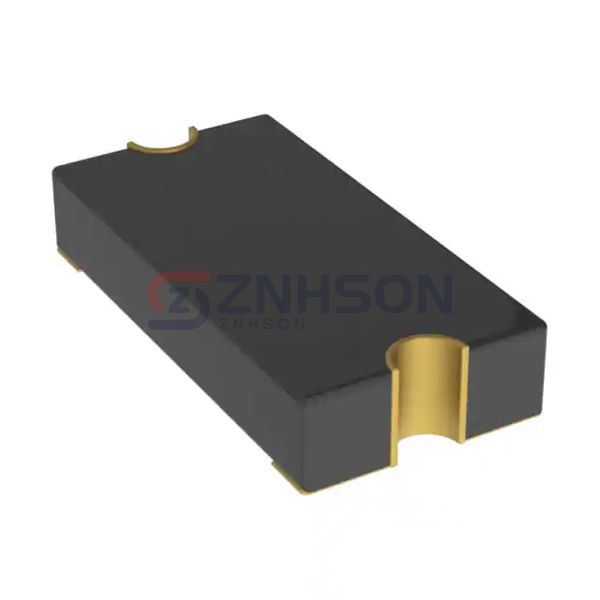

MF-NSMF012-2
Bourns Inc.
Bourns Inc.
PTC RESET FUSE 30V 120MA 1206
$0.34
Available to order
Reference Price (USD)
3,000+
$0.14414
6,000+
$0.14152
15,000+
$0.13628
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the MF-NSMF012-2 PTC resettable fuse by Bourns Inc., a top-tier solution for circuit protection. These fuses automatically reset after a fault, providing continuous protection without manual intervention. The MF-NSMF012-2 is engineered to handle high surge currents and offers stable performance across a wide temperature range. Its robust construction ensures reliability in applications such as power supplies, battery packs, and telecommunications equipment. By choosing the MF-NSMF012-2, you're investing in a fuse that combines innovation, safety, and efficiency for all your circuit protection needs.
Specifications
- Product Status: Active
- Type: Polymeric
- Voltage - Max: 30V
- Current - Max: 10 A
- Current - Hold (Ih) (Max): 120 mA
- Current - Trip (It): 290 mA
- Time to Trip: 200 ms
- Resistance - Initial (Ri) (Min): 1.35 Ohms
- Resistance - Post Trip (R1) (Max): 8.5 Ohms
- Resistance - 25°C (Typ): -
- Operating Temperature: -40°C ~ 85°C
- Ratings: AEC-Q200
- Mounting Type: Surface Mount
- Package / Case: 1206 (3216 Metric), Concave
- Size / Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
- Height - Seated (Max): -
- Thickness (Max): 0.043" (1.10mm)
- Lead Spacing: -
