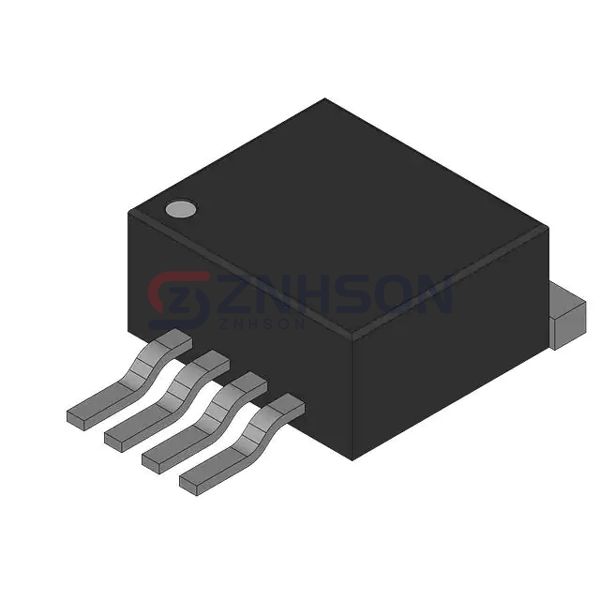

MIC29503BU

Microchip Technology

Manufacturer

Microchip Technology

Description:

IC REG LINEAR POS ADJ 5A TO263-5

Datasheet:

MIC29503BU Datasheet

$8.29

Available to order

Reference Price (USD)

150+

$7.54580

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The MIC29503BU from Microchip Technology is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Obsolete
Output Configuration: Positive
Output Type: Adjustable
Number of Regulators: 1
Voltage - Input (Max): 26V
Voltage - Output (Min/Fixed): 1.25V
Voltage - Output (Max): 25V
Voltage Dropout (Max): 0.6V @ 5A
Current - Output: 5A
Current - Quiescent (Iq): -
Current - Supply (Max): -
PSRR: -
Control Features: -
Protection Features: Over Current, Over Temperature, Reverse Polarity, Transient Voltage
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package: TO-263-5
