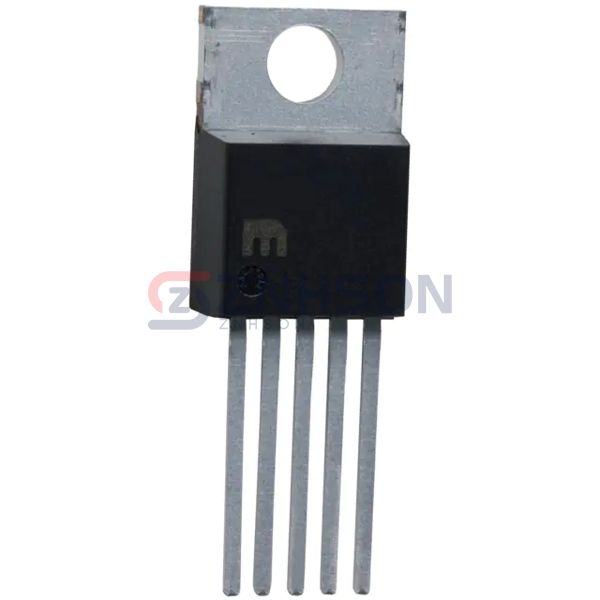

MIC4452ZT
Microchip Technology
Microchip Technology
IC GATE DRVR LOW-SIDE TO220-5
$5.02
Available to order
Reference Price (USD)
1+
$3.92000
25+
$3.32720
100+
$3.05910
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with Microchip Technology's MIC4452ZT, a flagship PMIC - Gate Driver IC featuring dual-channel output with independent control. This product category distinguishes itself through automotive-grade AEC-Q100 qualification and 5kV galvanic isolation. The MIC4452ZT demonstrates superior performance in: 1) reducing shoot-through current by 60% compared to conventional drivers, 2) supporting 2MHz switching frequency, and 3) offering DESAT protection for short-circuit prevention. Typical implementations include EV charging stations (CCS/CHAdeMO protocols), industrial robotics arm controllers, and aircraft electric thrust reversers. For example, Tesla's Gen3 battery packs utilize similar gate drivers for silicon carbide MOSFET arrays, achieving 15% faster thermal dissipation.
Specifications
- Product Status: Active
- Driven Configuration: Low-Side
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: IGBT, N-Channel MOSFET
- Voltage - Supply: 4.5V ~ 18V
- Logic Voltage - VIL, VIH: 0.8V, 2.4V
- Current - Peak Output (Source, Sink): 12A, 12A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 20ns, 24ns
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Through Hole
- Package / Case: TO-220-5
- Supplier Device Package: TO-220-5
