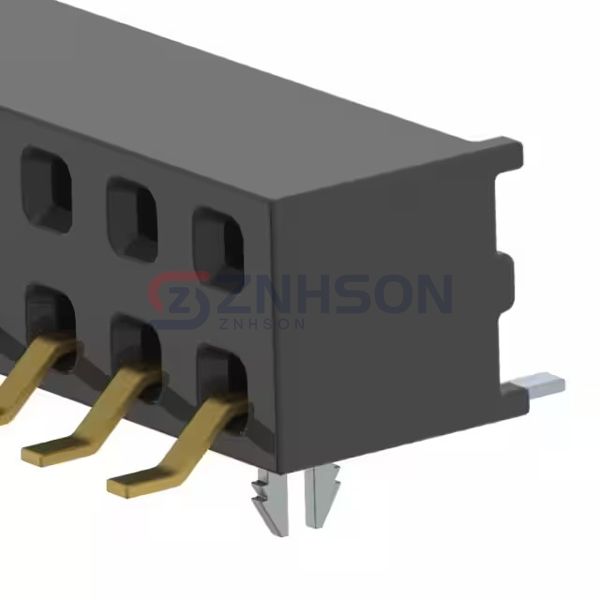

MMS-110-02-LM-DH-LC-TR
Samtec Inc.
Samtec Inc.
CONN RCPT 20P 0.079 GOLD SMD R/A
$6.16
Available to order
Reference Price (USD)
125+
$3.67200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your connectivity solutions with MMS-110-02-LM-DH-LC-TR Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are designed for easy integration and long-lasting performance in consumer electronics, security systems, and agricultural machinery. Featuring tool-less assembly, color-coded housings, and IP-rated options, they simplify installation and maintenance. Applications include smart appliances, surveillance cameras, and automated farming equipment. Samtec Inc. connectors deliver the reliability and efficiency your projects demand.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 20
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Insulation Color: Black
- Insulation Height: 0.157" (4.00mm)
- Contact Length - Post: -
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: -
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Lock
- Current Rating (Amps): 3.9A per Contact
- Voltage Rating: -
