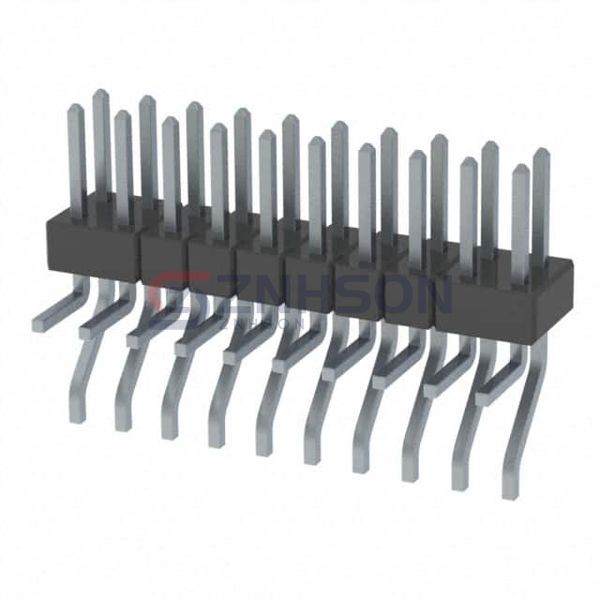

MMT-110-02-T-MT-P-TR
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 20POS 2MM
$3.93
Available to order
Reference Price (USD)
125+
$2.40000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the MMT-110-02-T-MT-P-TR rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle; Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.175" (4.45mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.157" (4.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
NorComp Inc.
26641401RP2
Mill-Max Manufacturing Corp.
852-40-002-10-001000
Amphenol ICC (FCI)
77317-104-68LF
Samtec Inc.
TSM-106-02-F-DH-LC
Amphenol ICC (FCI)
54202-G08-11A
Samtec Inc.
TSM-131-02-S-SH-P
Preci-Dip
350-80-135-01-899101
Molex
0022284061

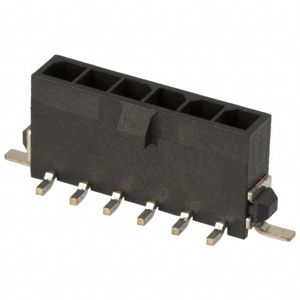

TE Connectivity AMP Connectors
