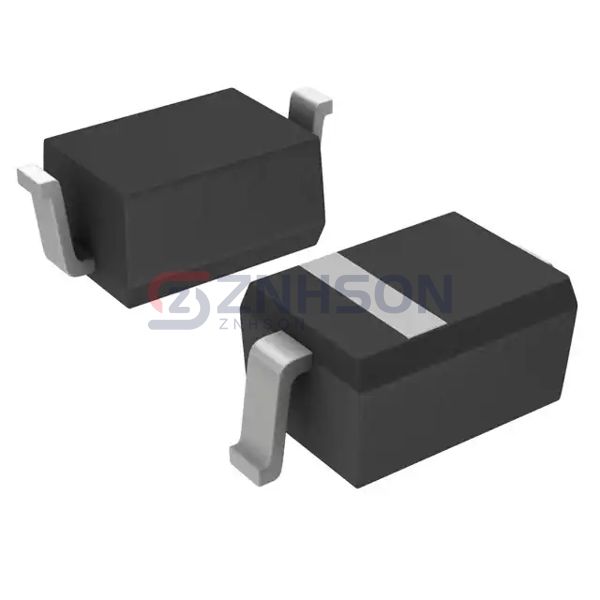

MMVL109T1G
onsemi
onsemi
DIODE TUNING 30V SOD-323
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your tuning circuits with onsemi's MMVL109T1G Varicap Diodes the epitome of innovation in variable reactance technology. These diodes boast an exceptionally wide capacitance range (up to 10:1 ratio) with minimal harmonic distortion, perfect for software-defined radios and spectrum analyzers. The silicon nitride passivation layer ensures long-term parameter stability, even in high-humidity conditions. From marine navigation systems to quantum computing research, MMVL109T1G delivers the precision that advanced electronics demand. Partner with onsemi for diodes backed by 25+ years of semiconductor expertise.
Specifications
- Product Status: Obsolete
- Capacitance @ Vr, F: 32pF @ 3V, 1MHz
- Capacitance Ratio: 6.5
- Capacitance Ratio Condition: C3/C25
- Voltage - Peak Reverse (Max): 30 V
- Diode Type: Single
- Q @ Vr, F: 200 @ 3V, 50MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
