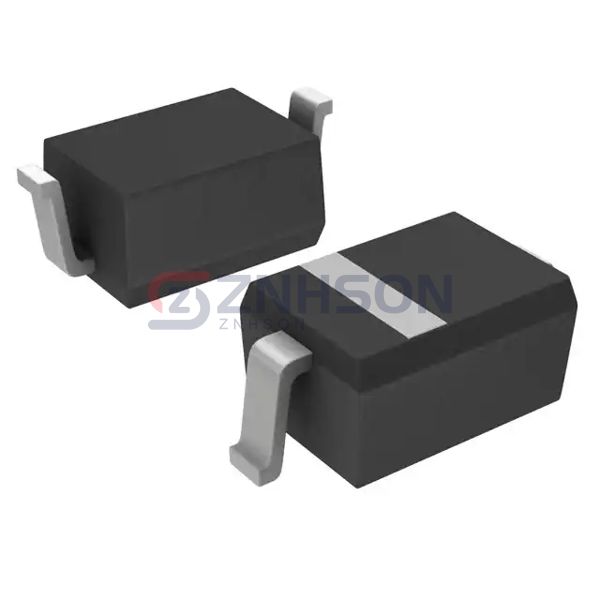

MMVL809T1G
onsemi
onsemi
DIODE PIN SWITCHING 20V SOD-323
$0.10
Available to order
Reference Price (USD)
1+
$0.10000
500+
$0.099
1000+
$0.098
1500+
$0.097
2000+
$0.096
2500+
$0.095
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
MMVL809T1G Variable Capacitance Diodes by onsemi represent the next evolution in RF tuning components. These Varactors feature patented hyperabrupt junction technology for unprecedented linearity in phase noise-sensitive applications like atomic clocks and MRI machines. The copper-tungsten carrier provides excellent heat dissipation for high-power RF amplifiers. With typical applications including satellite payloads, electronic countermeasures, and terahertz research, MMVL809T1G is the preferred choice when performance margins matter most. Each diode undergoes rigorous QPL testing to ensure military-grade reliability.
Specifications
- Product Status: Obsolete
- Capacitance @ Vr, F: 6.1pF @ 2V, 1MHz
- Capacitance Ratio: 2.6
- Capacitance Ratio Condition: C2/C8
- Voltage - Peak Reverse (Max): 20 V
- Diode Type: Single
- Q @ Vr, F: 75 @ 3V, 500MHz
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
