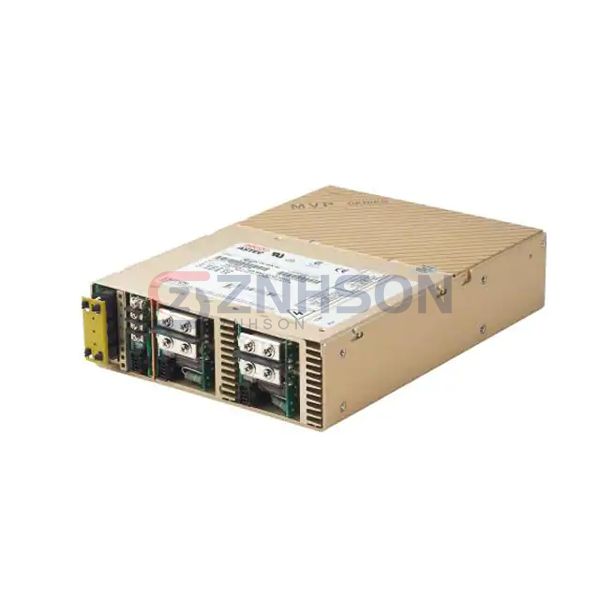

MP1-1D-1E-1O-1O-1Q-1Q-4LL-03

Specifications

• Product Status: Obsolete
• Type: Enclosed
• Number of Outputs: 8
• Voltage - Input: 85 ~ 264 VAC, 120 ~ 300 VDC
• Voltage - Output 1: 3.3V
• Voltage - Output 2: 5V
• Voltage - Output 3: 18V
• Voltage - Output 4: 18V
• Voltage - Output 5: 24V
• Voltage - Output 6: 24V
• Current - Output 1: 35 A
• Current - Output 2: 35 A
• Current - Output 3: 11 A
• Current - Output 4: 11 A
• Current - Output 5: 8.5 A
• Current - Output 6: 8.5 A
• Power (Watts): 1200W
• Applications: ITE (Commercial), Medical
• Voltage - Isolation: -
• Efficiency: 85%
• Operating Temperature: -40°C ~ 70°C (With Derating)
• Features: Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input
• Mounting Type: Chassis Mount
• Size / Dimension: 11.00" L x 8.00" W x 2.50" H (279.4mm x 203.2mm x 63.5mm)
• Approval Agency: CB, CE, CSA, UL, VDE
• Standard Number: -
