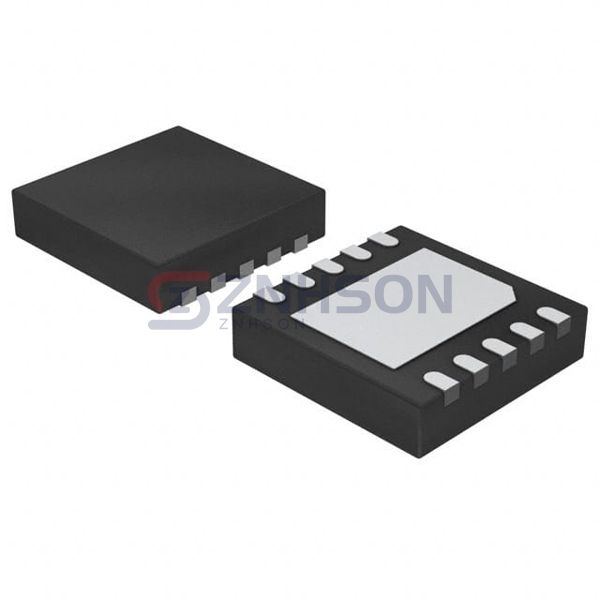

MP1921HR-A-LF-Z
Monolithic Power Systems Inc.
Monolithic Power Systems Inc.
IC GATE DRVR HALF-BRIDGE 10QFN
$0.00
Available to order
Reference Price (USD)
5,000+
$0.91000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with Monolithic Power Systems Inc.'s MP1921HR-A-LF-Z, a flagship PMIC - Gate Driver IC featuring dual-channel output with independent control. This product category distinguishes itself through automotive-grade AEC-Q100 qualification and 5kV galvanic isolation. The MP1921HR-A-LF-Z demonstrates superior performance in: 1) reducing shoot-through current by 60% compared to conventional drivers, 2) supporting 2MHz switching frequency, and 3) offering DESAT protection for short-circuit prevention. Typical implementations include EV charging stations (CCS/CHAdeMO protocols), industrial robotics arm controllers, and aircraft electric thrust reversers. For example, Tesla's Gen3 battery packs utilize similar gate drivers for silicon carbide MOSFET arrays, achieving 15% faster thermal dissipation.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 9V ~ 18V
- Logic Voltage - VIL, VIH: 1V, 2.4V
- Current - Peak Output (Source, Sink): 2.5A, 2.5A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): 120 V
- Rise / Fall Time (Typ): 12ns, 9ns
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 10-VDFN Exposed Pad
- Supplier Device Package: 10-QFN (4x4)
