MPC509AU
Texas Instruments
Texas Instruments

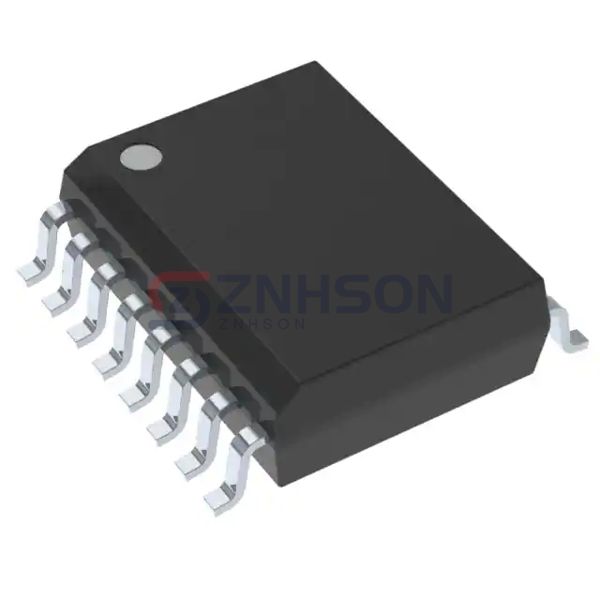

IC MULTIPLEXER DUAL 1X4 16SOIC
$11.89
Available to order
Reference Price (USD)
1+
$11.06000
10+
$9.98900
40+
$9.52425
120+
$8.26992
520+
$7.20131
1,000+
$6.27210
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MPC509AU from Texas Instruments is a high-performance Analog Switch/Multiplexer/Demultiplexer IC designed for precision signal routing applications. As part of our Interface - Analog Switches, Multiplexers, Demultiplexers category, this integrated circuit offers ultra-low on-resistance and minimal charge injection, ensuring signal integrity in demanding environments. These ICs feature wide bandwidth, low power consumption, and excellent channel-to-channel isolation. Typical applications include audio/video signal routing, automated test equipment, data acquisition systems, and communication infrastructure. The MPC509AU is particularly suitable for medical imaging devices, industrial automation controls, and aerospace instrumentation where reliable signal switching is critical.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 1.5kOhm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): -
- Voltage - Supply, Dual (V±): ±5V ~ 22V
- Switch Time (Ton, Toff) (Max): 200ns, 250ns (Typ)
- -3db Bandwidth: -
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 5pF, 12pF
- Current - Leakage (IS(off)) (Max): 500pA (Typ)
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SOIC
