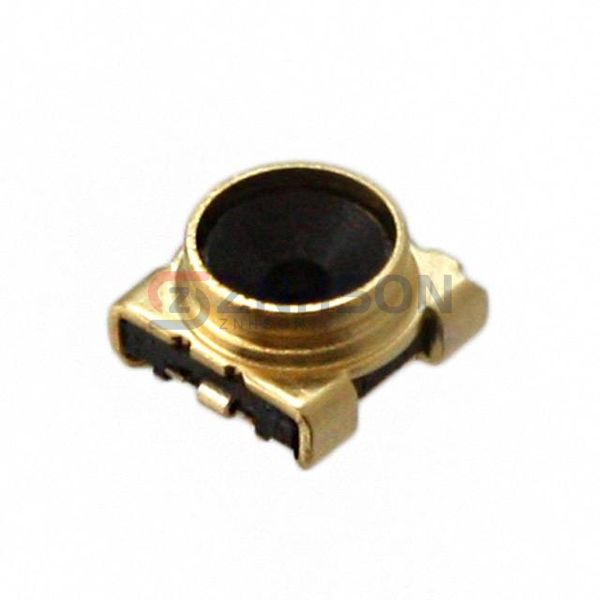

MS-156C(20)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN COAX SWITCH RCPT STR 50OHM
$0.74
Available to order
Reference Price (USD)
2,000+
$0.31840
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MS-156C(20) from Hirose Electric Co Ltd represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The MS-156C(20) variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: Coaxial Switch - 4mm Plug Dia
- Connector Type: Receptacle, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Surface Mount
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 11 GHz
- Number of Ports: 1
- Features: Internal Switch
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Copper Alloy
