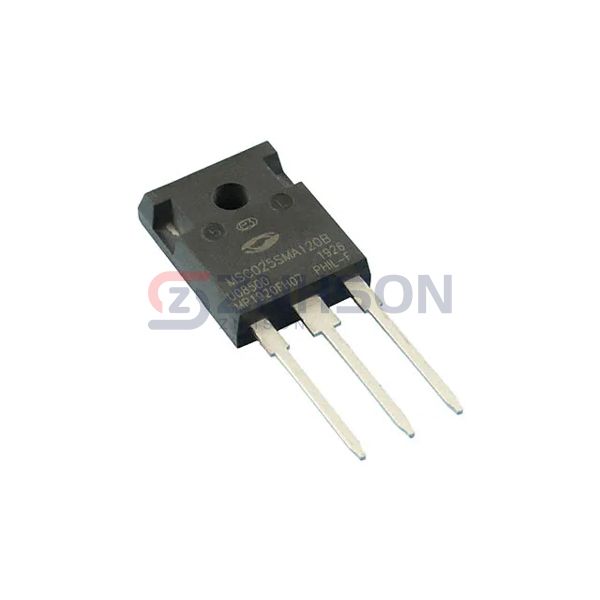

MSC025SMA120B
Microchip Technology
Microchip Technology
SICFET N-CH 1.2KV 103A TO247-3
$36.59
Available to order
Reference Price (USD)
1+
$36.59000
500+
$36.2241
1000+
$35.8582
1500+
$35.4923
2000+
$35.1264
2500+
$34.7605
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MSC025SMA120B from Microchip Technology redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the MSC025SMA120B offers the precision and reliability you need. Trust Microchip Technology to power your next breakthrough innovation.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 103A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 31mOhm @ 40A, 20V
- Vgs(th) (Max) @ Id: 2.8V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 232 nC @ 20 V
- Vgs (Max): +25V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 3020 pF @ 1000 V
- FET Feature: -
- Power Dissipation (Max): 500W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-3
- Package / Case: TO-247-3
