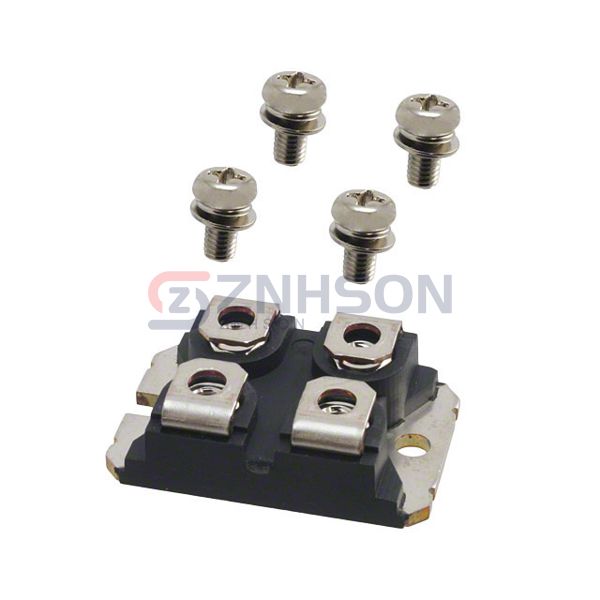

MSC040SMA120J
Microchip Technology
Microchip Technology
SICFET N-CH 1200V 53A SOT227
$37.15
Available to order
Reference Price (USD)
1+
$37.15000
500+
$36.7785
1000+
$36.407
1500+
$36.0355
2000+
$35.664
2500+
$35.2925
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the MSC040SMA120J by Microchip Technology, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the MSC040SMA120J is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 53A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 50mOhm @ 40A, 20V
- Vgs(th) (Max) @ Id: 2.8V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 137 nC @ 20 V
- Vgs (Max): +25V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 1990 pF @ 1000 V
- FET Feature: -
- Power Dissipation (Max): 208W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: SOT-227 (ISOTOP®)
- Package / Case: SOT-227-4, miniBLOC
