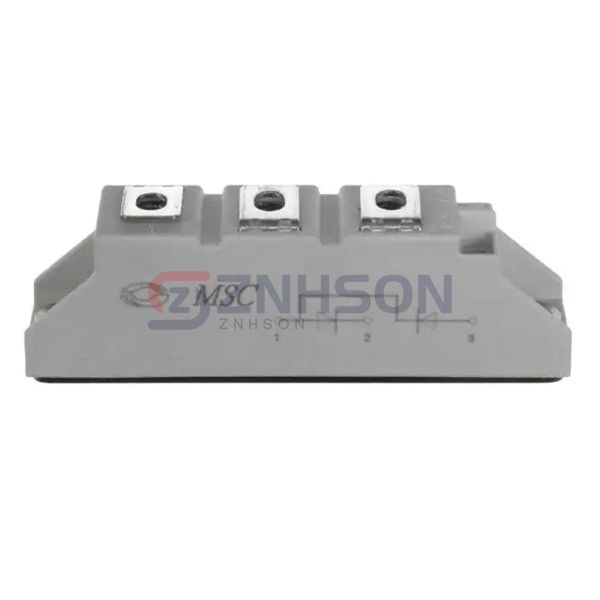

MSCD36-08
Microsemi Corporation
Microsemi Corporation
DIODE MODULE 800V 36A D1
$22.27
Available to order
Reference Price (USD)
1+
$13.62000
10+
$12.52100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the MSCD36-08 by Microsemi Corporation represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Microsemi Corporation's patented junction design, the MSCD36-08 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Obsolete
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 800 V
- Current - Average Rectified (Io) (per Diode): 36A
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 100 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 5 mA @ 800 V
- Operating Temperature - Junction: -
- Mounting Type: Chassis Mount
- Package / Case: D1
- Supplier Device Package: D1
