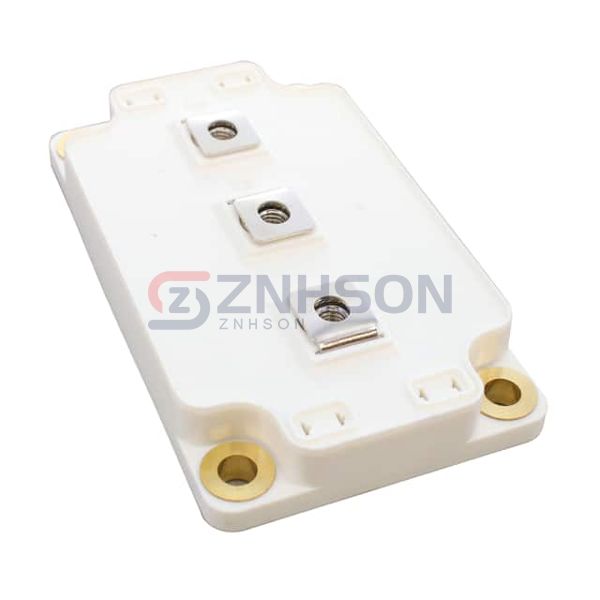

MSCDC200A70D1PAG
Microchip Technology
Microchip Technology
PM-DIODE-SIC-SBD-D1P
$186.03
Available to order
Reference Price (USD)
1+
$186.03000
500+
$184.1697
1000+
$182.3094
1500+
$180.4491
2000+
$178.5888
2500+
$176.7285
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the MSCDC200A70D1PAG by Microchip Technology represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Microchip Technology's patented junction design, the MSCDC200A70D1PAG achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Silicon Carbide Schottky
- Voltage - DC Reverse (Vr) (Max): 700 V
- Current - Average Rectified (Io) (per Diode): 200A (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 200 A
- Speed: No Recovery Time > 500mA (Io)
- Reverse Recovery Time (trr): 0 ns
- Current - Reverse Leakage @ Vr: -
- Operating Temperature - Junction: -40°C ~ 175°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: D1P
