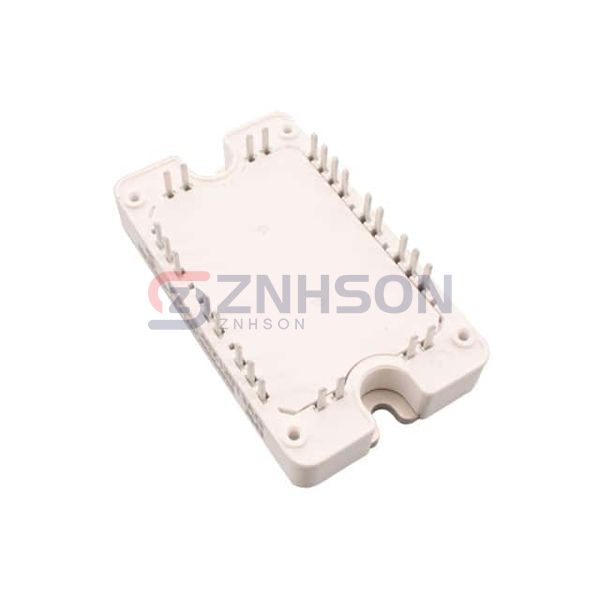

MSCGL40X120T3AG
Microchip Technology
Microchip Technology
PM-IGBT-TFS-SP3F
$129.06
Available to order
Reference Price (USD)
1+
$129.05500
500+
$127.76445
1000+
$126.4739
1500+
$125.18335
2000+
$123.8928
2500+
$122.60225
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's MSCGL40X120T3AG represents the cutting edge in Transistors - IGBTs - Modules technology. This discrete semiconductor product delivers superior power control with its optimized gate-drive characteristics and short-circuit ruggedness. The module's innovative design features include an advanced NPT trench construction and low inductance package. Primary applications include traction systems, induction heating, and high-frequency power supplies. A typical use case would be implementing the MSCGL40X120T3AG in industrial servo drives or medium-voltage frequency converters. Trust Microchip Technology's expertise in IGBT modules for energy-efficient power management solutions.
Specifications
- Product Status: Active
- IGBT Type: Trench
- Configuration: Full Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 40 A
- Power - Max: -
- Vce(on) (Max) @ Vge, Ic: -
- Current - Collector Cutoff (Max): 40 A
- Input Capacitance (Cies) @ Vce: -
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: SP3F
