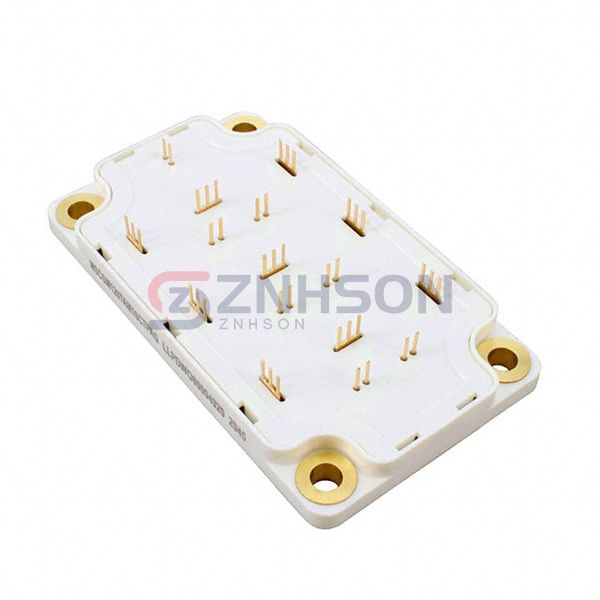

MSCSM120TAM11CTPAG
Microchip Technology
Microchip Technology
PM-MOSFET-SIC-SBD~-SP6P
$1,138.84
Available to order
Reference Price (USD)
1+
$1138.84000
500+
$1127.4516
1000+
$1116.0632
1500+
$1104.6748
2000+
$1093.2864
2500+
$1081.898
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MSCSM120TAM11CTPAG by Microchip Technology is a high-performance component within the Discrete Semiconductor Products category. Designed as part of the Transistors - FETs, MOSFETs - Arrays series, it offers exceptional durability and efficiency for power-sensitive applications. From medical equipment to aerospace technology, the MSCSM120TAM11CTPAG provides reliable operation under stringent conditions. Microchip Technology's innovative approach ensures this MOSFET array meets the needs of modern electronics.
Specifications
- Product Status: Active
- FET Type: 6 N-Channel (3-Phase Bridge)
- FET Feature: Silicon Carbide (SiC)
- Drain to Source Voltage (Vdss): 1200V (1.2kV)
- Current - Continuous Drain (Id) @ 25°C: 251A (Tc)
- Rds On (Max) @ Id, Vgs: 10.4mOhm @ 120A, 20V
- Vgs(th) (Max) @ Id: 2.8V @ 3mA
- Gate Charge (Qg) (Max) @ Vgs: 696nC @ 20V
- Input Capacitance (Ciss) (Max) @ Vds: 9060pF @ 1000V
- Power - Max: 1.042kW (Tc)
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: SP6-P
