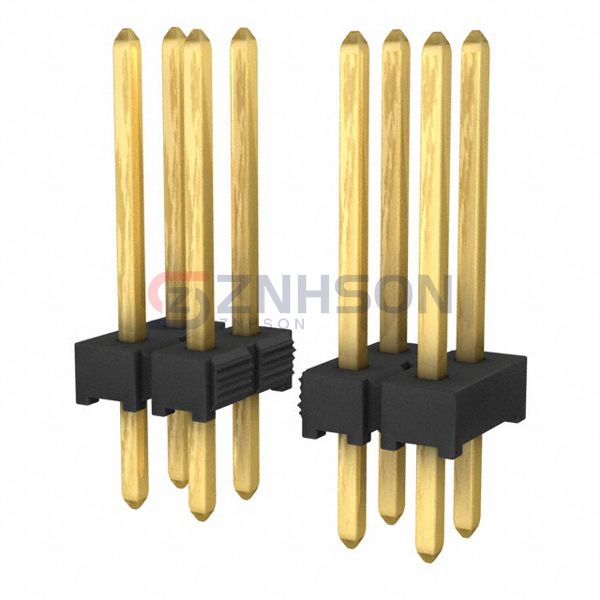

MTMM-110-07-G-D-290
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 20POS 2MM
$5.91
Available to order
Reference Price (USD)
1+
$3.38000
10+
$3.24000
100+
$2.70000
500+
$2.29500
1,000+
$1.95750
5,000+
$1.75500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the MTMM-110-07-G-D-290 rectangular connector header from Samtec Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the MTMM-110-07-G-D-290 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Samtec Inc. guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.290" (7.37mm)
- Contact Length - Post: 0.107" (2.71mm)
- Overall Contact Length: 0.456" (11.58mm)
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
