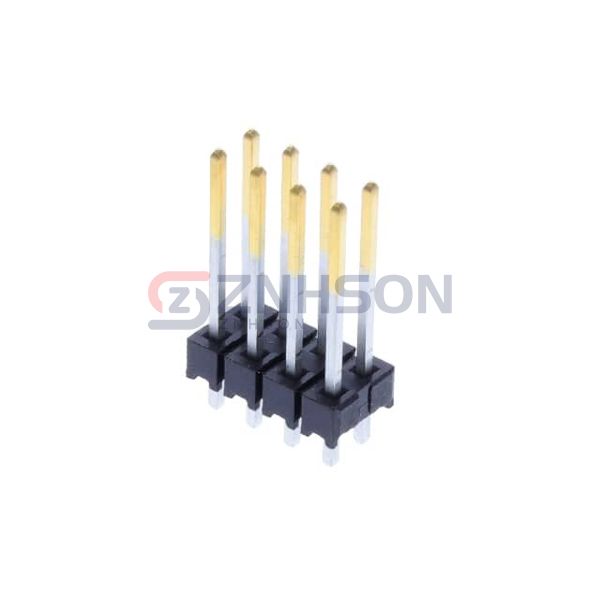

MTSW-104-22-L-D-440
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 8POS 2.54MM
$1.43
Available to order
Reference Price (USD)
1+
$0.82000
10+
$0.72400
100+
$0.62480
500+
$0.51120
1,000+
$0.45440
5,000+
$0.39760
10,000+
$0.37772
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the MTSW-104-22-L-D-440 rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.440" (11.17mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 0.630" (16.00mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
