MUX36D04IRUMR
Texas Instruments
Texas Instruments
IC SWITCH DUAL 16WQFN
$6.62
Available to order
Reference Price (USD)
3,000+
$2.99736
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the MUX36D04IRUMR - Texas Instruments's most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The MUX36D04IRUMR enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 170Ohm
- Channel-to-Channel Matching (ΔRon): 2.4Ohm
- Voltage - Supply, Single (V+): 10V ~ 36V
- Voltage - Supply, Dual (V±): ±5V ~ 18V
- Switch Time (Ton, Toff) (Max): 136ns, 75ns
- -3db Bandwidth: -
- Charge Injection: 0.3pC
- Channel Capacitance (CS(off), CD(off)): 2.4pF, 4.3pF
- Current - Leakage (IS(off)) (Max): 40pA
- Crosstalk: -96dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount

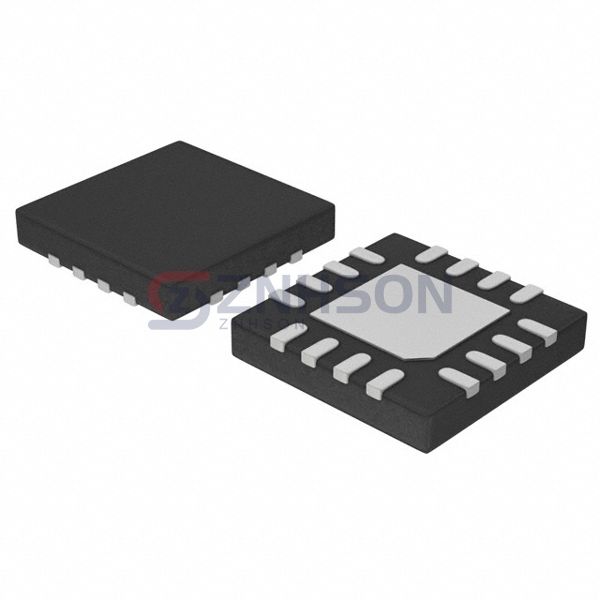

- Package / Case: 16-WQFN Exposed Pad
- Supplier Device Package: 16-WQFN (4x4)
