MUX506IDWR
Texas Instruments
Texas Instruments

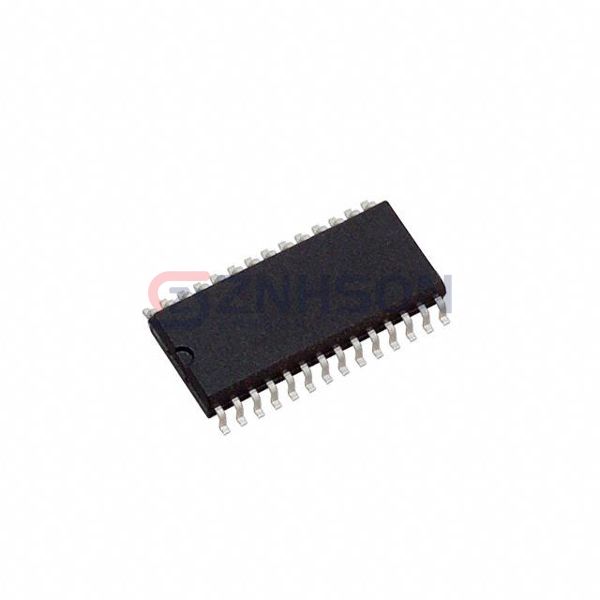

IC SWITCH SINGLE 28SOIC
$4.90
Available to order
Reference Price (USD)
1,000+
$1.94040
2,000+
$1.84338
5,000+
$1.77408
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MUX506IDWR from Texas Instruments's Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The MUX506IDWR is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 16:1
- Number of Circuits: 1
- On-State Resistance (Max): 200Ohm
- Channel-to-Channel Matching (ΔRon): 6Ohm
- Voltage - Supply, Single (V+): 10V ~ 36V
- Voltage - Supply, Dual (V±): ±5V ~ 18V
- Switch Time (Ton, Toff) (Max): 136ns, 78ns
- -3db Bandwidth: -
- Charge Injection: 0.67pC
- Channel Capacitance (CS(off), CD(off)): 3pF, 12.2pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -96dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 28-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 28-SOIC
