MUX507IDWR
Texas Instruments
Texas Instruments

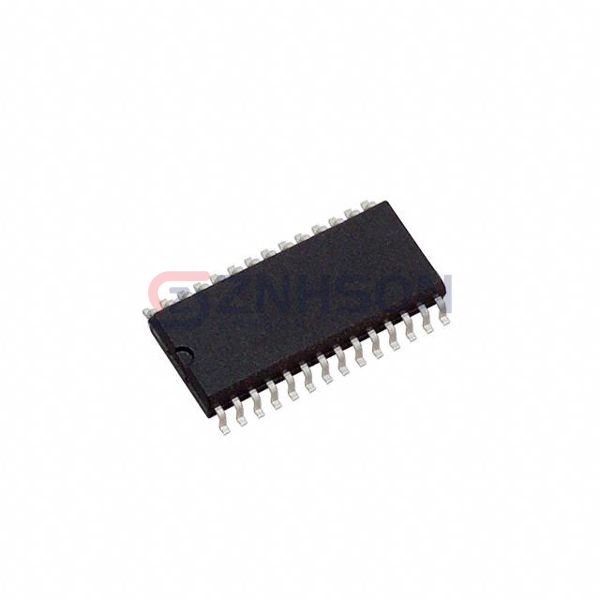

IC SWITCH DUAL 28SOIC
$4.90
Available to order
Reference Price (USD)
1,000+
$1.94040
2,000+
$1.84338
5,000+
$1.77408
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's MUX507IDWR redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The MUX507IDWR is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 8:1
- Number of Circuits: 2
- On-State Resistance (Max): 200Ohm
- Channel-to-Channel Matching (ΔRon): 6Ohm
- Voltage - Supply, Single (V+): 10V ~ 36V
- Voltage - Supply, Dual (V±): ±5V ~ 18V
- Switch Time (Ton, Toff) (Max): 136ns, 78ns
- -3db Bandwidth: -
- Charge Injection: 0.67pC
- Channel Capacitance (CS(off), CD(off)): 3pF, 7.5pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -96dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 28-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 28-SOIC
