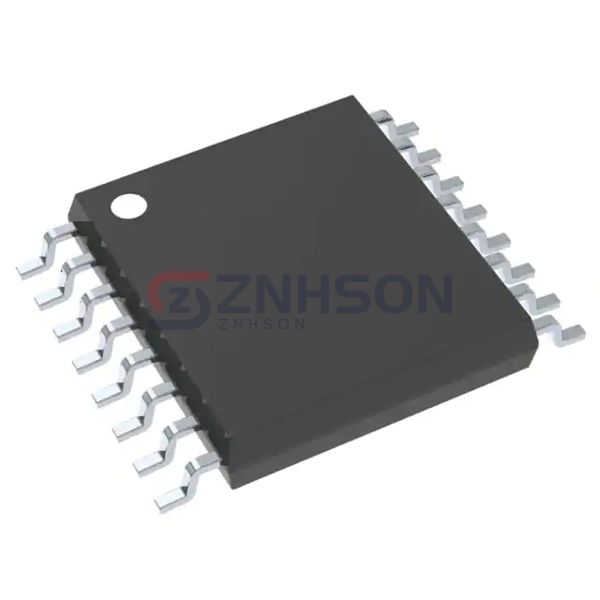

MUX509IPW
Texas Instruments
Texas Instruments
IC MUX DUAL 4:1 170 OHM 16TSSOP
$3.49
Available to order
Reference Price (USD)
1+
$3.48911
500+
$3.4542189
1000+
$3.4193278
1500+
$3.3844367
2000+
$3.3495456
2500+
$3.3146545
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the MUX509IPW Analog Switch solution by Texas Instruments, engineered for seamless signal management in complex electronic systems. Our Interface ICs collection provides robust multiplexing/demultiplexing capabilities with breakthrough performance metrics. These components exhibit nanosecond switching speeds, 15V analog signal handling, and ESD protection up to 2kV. The MUX509IPW delivers exceptional performance in battery-powered devices, telecom switches, automotive infotainment systems, and precision measurement instruments. Engineers trust this IC for its consistent performance in harsh temperature ranges (-40 C to +125 C) and its compatibility with both digital control signals and analog waveforms.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 170Ohm
- Channel-to-Channel Matching (ΔRon): 2.4Ohm
- Voltage - Supply, Single (V+): 10V ~ 36V
- Voltage - Supply, Dual (V±): ±5V ~ 18V
- Switch Time (Ton, Toff) (Max): 136ns, 75ns
- -3db Bandwidth: -
- Charge Injection: 0.3pC
- Channel Capacitance (CS(off), CD(off)): 2.4pF, 4.3pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -96dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 16-TSSOP
