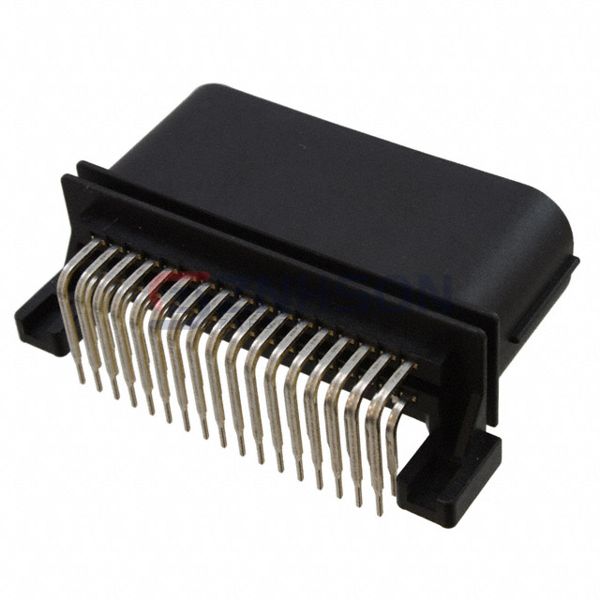

MX23A34NF1
JAE Electronics
JAE Electronics
CONN HEADER R/A 34POS 2.5MM
$10.55
Available to order
Reference Price (USD)
1+
$9.38000
10+
$8.97600
120+
$7.54800
600+
$6.32400
1,080+
$5.58960
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the MX23A34NF1 rectangular connector header from JAE Electronics. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the MX23A34NF1 is perfect for automotive, industrial, and consumer electronics. JAE Electronics ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.173" (4.40mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.122" (3.10mm)
- Overall Contact Length: -
- Insulation Height: 0.720" (18.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: Waterproof
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
0702871094
Amphenol ICC (FCI)
67996-506HLF
Preci-Dip
850-10-020-30-001101
Molex
0705430116
Samtec Inc.
TSM-135-02-T-SH-P
Preci-Dip
350-10-157-01-609101
Samtec Inc.
TSM-103-01-F-SV-002
Samtec Inc.

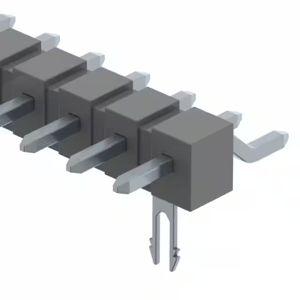

TSM-110-04-T-SH-LC-P-TR
Amphenol ICC (FCI)

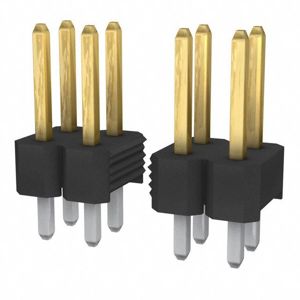

861400162YO6LF
