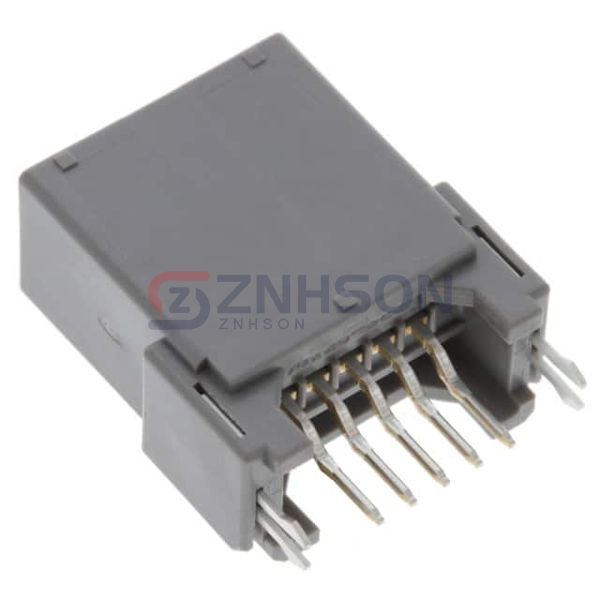

MX34005UF1
JAE Electronics
JAE Electronics
CONN HEADER VERT 5POS 2.2MM
$2.15
Available to order
Reference Price (USD)
1+
$1.92000
10+
$1.74000
25+
$1.63320
50+
$1.56200
100+
$1.49100
250+
$1.34900
500+
$1.24250
1,000+
$1.06500
2,500+
$0.99400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the MX34005UF1 rectangular connector header from JAE Electronics. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the MX34005UF1 is perfect for automotive, industrial, and consumer electronics. JAE Electronics ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.087" (2.20mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.594" (15.09mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
- Features: Board Lock
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Gray
- Current Rating (Amps): 3A
- Voltage Rating: -
