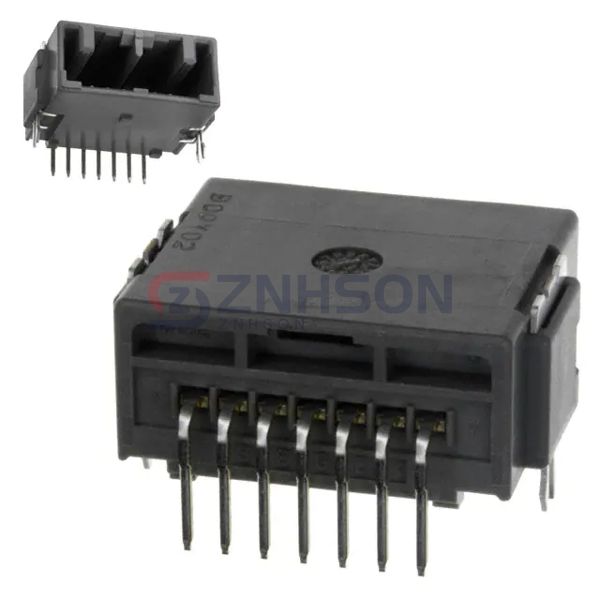

MX34007NF1
JAE Electronics
JAE Electronics
CONN HEADER R/A 7POS 2.2MM
$2.30
Available to order
Reference Price (USD)
1+
$2.03000
10+
$1.83800
100+
$1.57500
500+
$1.31250
1,260+
$1.12500
5,040+
$0.99750
10,080+
$0.97500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the MX34007NF1 rectangular connector header from JAE Electronics for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. JAE Electronics is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.087" (2.20mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.421" (10.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
- Features: Board Lock
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Gray
- Current Rating (Amps): 3A
- Voltage Rating: -
