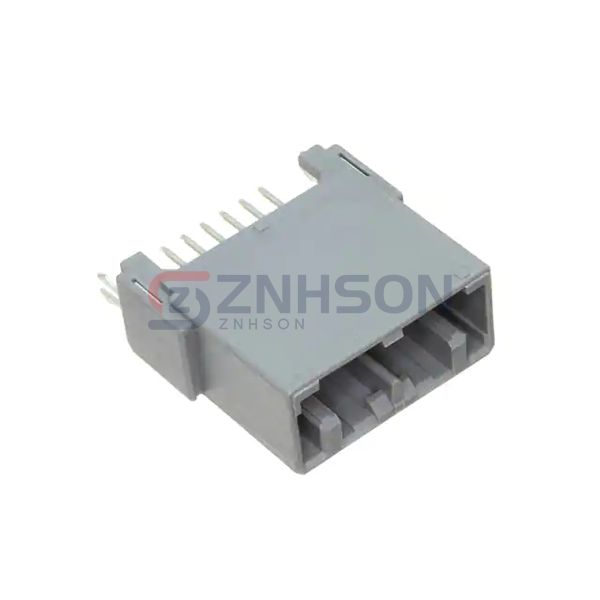

MX34007UF1
JAE Electronics
JAE Electronics
CONN HEADER VERT 7POS 2.2MM
$2.35
Available to order
Reference Price (USD)
1+
$2.08000
10+
$1.88700
25+
$1.77120
50+
$1.69400
100+
$1.61700
250+
$1.46300
500+
$1.34750
1,000+
$1.15500
2,500+
$1.07800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MX34007UF1 by JAE Electronics is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the MX34007UF1 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. JAE Electronics ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.087" (2.20mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.594" (15.09mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
- Features: Board Lock
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Gray
- Current Rating (Amps): 3A
- Voltage Rating: -
