MX34020NF1
JAE Electronics
JAE Electronics

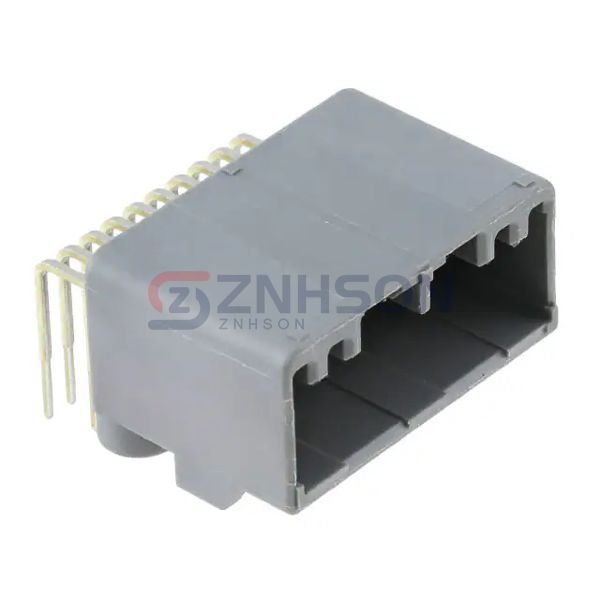

CONN HEADER R/A 20POS 2.2MM
$1.79
Available to order
Reference Price (USD)
1+
$1.57000
10+
$1.42100
100+
$1.21800
500+
$1.01500
1,152+
$0.87000
5,760+
$0.77140
10,368+
$0.75400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MX34020NF1 by JAE Electronics is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the MX34020NF1 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. JAE Electronics ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.087" (2.20mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.626" (15.90mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
- Features: Mounting Flange
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Gray
- Current Rating (Amps): 3A
- Voltage Rating: -
