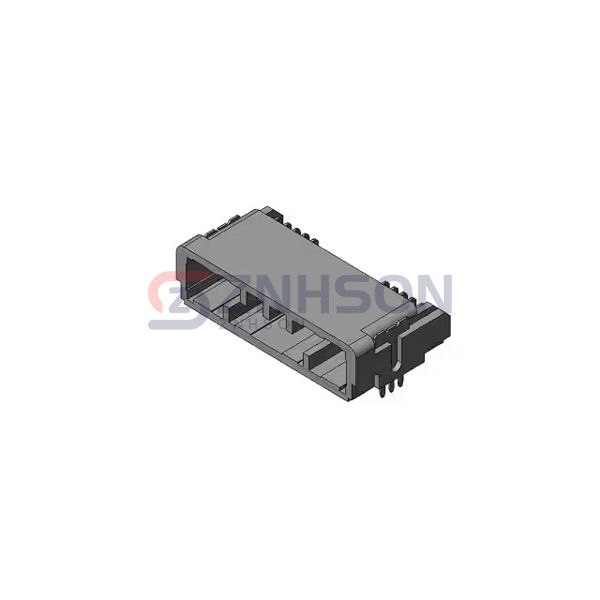

MX77A024HF1
JAE Electronics
JAE Electronics
CONN PIN HDR 24 POS R/A SMT
$9.06
Available to order
Reference Price (USD)
1+
$9.06000
500+
$8.9694
1000+
$8.8788
1500+
$8.7882
2000+
$8.6976
2500+
$8.607
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the MX77A024HF1 rectangular connector header from JAE Electronics. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the MX77A024HF1 is perfect for automotive, industrial, and consumer electronics. JAE Electronics ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.116" (2.95mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.382" (9.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
