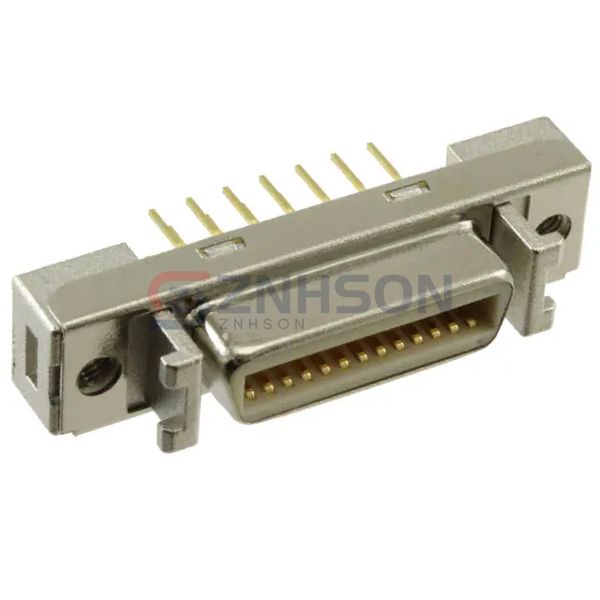

N10226-6212PC
3M
3M
CONN RCPT 26POS PCB SOLDER
$8.29
Available to order
Reference Price (USD)
1+
$6.64000
10+
$6.36600
25+
$5.81280
50+
$5.53600
100+
$5.25920
250+
$4.70560
500+
$4.42880
1,000+
$3.87520
2,500+
$3.68144
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
3M's N10226-6212PC represents the gold standard in D-Shaped Centronics Connectors within the broader Connectors, Interconnects category. These components are characterized by their distinctive D-shell mechanical design that prevents incorrect mating and provides mechanical stability. Technical highlights include solder cup or PCB termination styles, operating temperatures from -40 C to +105 C, and current ratings up to 5A per contact. The primary application fields encompass data acquisition systems, military/aerospace electronics, and industrial control panels. Specific implementations include legacy server backplanes, robotic controller interfaces, and avionics test equipment where these connectors ensure fail-safe operation.
Specifications
- Product Status: Active
- Connector Style: Outer Shroud Contacts
- Connector Type: Receptacle
- Number of Positions: 26
- Number of Rows: 2
- Mounting Type: Panel Mount, Through Hole
- Termination: Solder
- Flange Feature: Housing/Shell (M2.6)
- Type: -
- Features: Shielded
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
