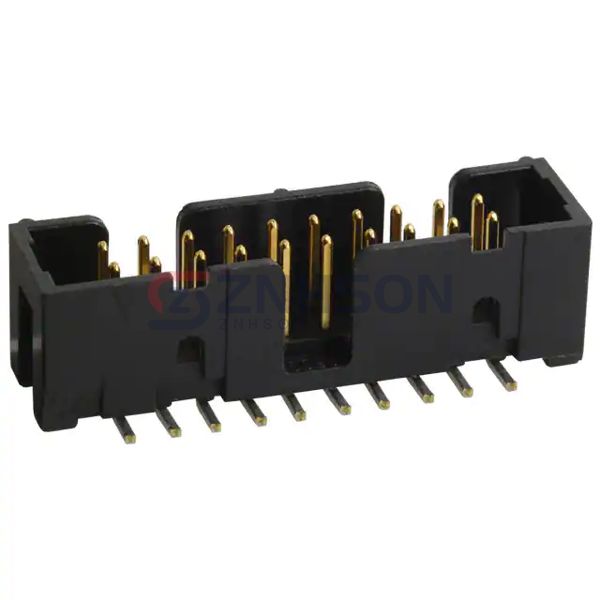

N2520-6V0C-RB-WE

Manufacturer

Description:

CONN HEADER SMD 20POS 2.54MM

Datasheet:

N2520-6V0C-RB-WE Datasheet

$4.45

Available to order

Reference Price (USD)

200+

$3.29600

400+

$2.88400

600+

$2.80160

1,000+

$2.38960

2,000+

$2.30720

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The N2520-6V0C-RB-WE male pin header by 3M provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. 3M guarantees connectors that enhance your product's functionality and lifespan.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 20
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Shrouded - 4 Wall
Mounting Type: Surface Mount
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.243" (6.17mm)
Contact Length - Post: -
Overall Contact Length: -
Insulation Height: 0.390" (9.91mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Material: Copper Alloy
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Features: Keying Slot, Pick and Place
Operating Temperature: -55°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 1.75A
Voltage Rating: -
