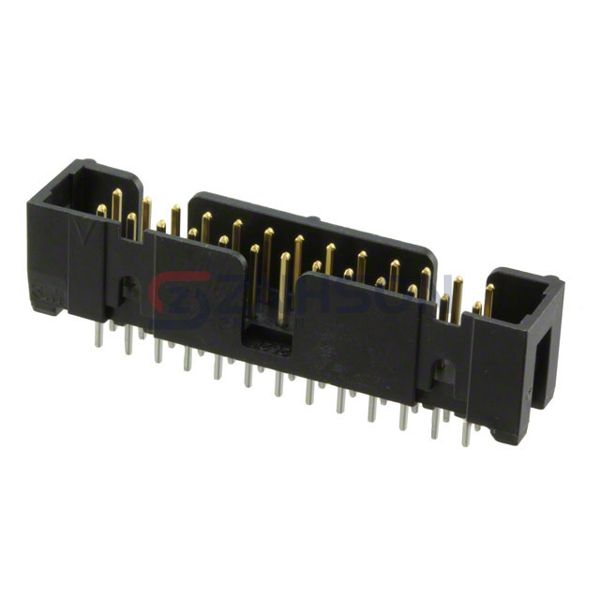

N2526-6002-RB
3M
3M
CONN HEADER VERT 26POS 2.54MM
$2.98
Available to order
Reference Price (USD)
1+
$2.38000
10+
$2.15600
100+
$1.84800
500+
$1.54000
1,000+
$1.32000
5,000+
$1.17040
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the N2526-6002-RB rectangular connector header from 3M. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the N2526-6002-RB meets the highest industry standards. 3M provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.243" (6.17mm)
- Contact Length - Post: 0.112" (2.84mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.75A
- Voltage Rating: -
Related Products
Samtec Inc.
HTSW-111-07-F-S
Molex
2059720031
Samtec Inc.
TSW-145-07-L-D
Samtec Inc.
HTSW-106-21-T-D
Molex
22-28-0046
CNC Tech
3010-26-002-12-00
Molex
1724470504
Sullins Connector Solutions
PEC09DAAN

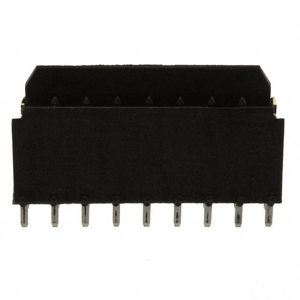

Amphenol ICC (FCI)
