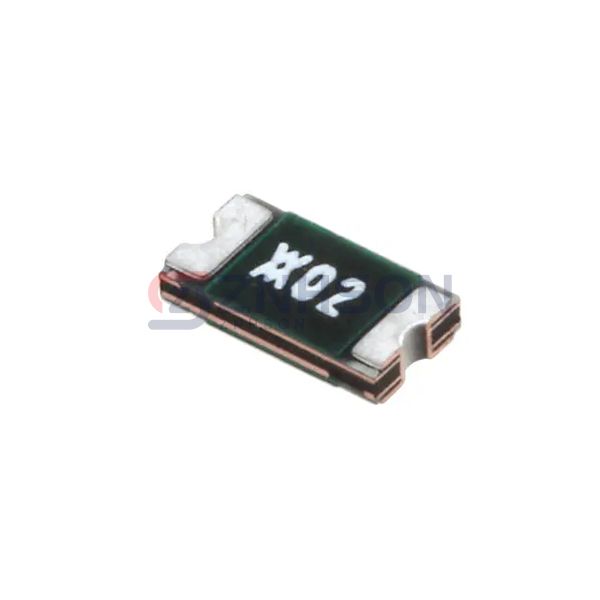

NANOASMDC016F-2
Littelfuse Inc.
Littelfuse Inc.
PTC RESET FUSE 48V 160MA 1206
$0.50
Available to order
Reference Price (USD)
3,000+
$0.19250
6,000+
$0.18900
15,000+
$0.18200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your circuits with the NANOASMDC016F-2 PTC resettable fuse from Littelfuse Inc.. This innovative fuse provides automatic reset capability, ensuring continuous operation after a fault. The NANOASMDC016F-2 is designed for high-performance applications, including automotive electronics, power tools, and HVAC systems. Its excellent thermal stability and low resistance make it a reliable choice for demanding environments. With the NANOASMDC016F-2, you can achieve superior circuit protection without compromising on performance or safety.
Specifications
- Product Status: Active
- Type: Polymeric
- Voltage - Max: 48V
- Current - Max: 10 A
- Current - Hold (Ih) (Max): 160 mA
- Current - Trip (It): 450 mA
- Time to Trip: 300 ms
- Resistance - Initial (Ri) (Min): 1.1 Ohms
- Resistance - Post Trip (R1) (Max): 5 Ohms
- Resistance - 25°C (Typ): -
- Operating Temperature: -40°C ~ 85°C
- Ratings: AEC-Q200
- Mounting Type: Surface Mount
- Package / Case: 1206 (3216 Metric), Concave
- Size / Dimension: 0.126" L x 0.063" W (3.20mm x 1.59mm)
- Height - Seated (Max): -
- Thickness (Max): 0.039" (1.00mm)
- Lead Spacing: -
