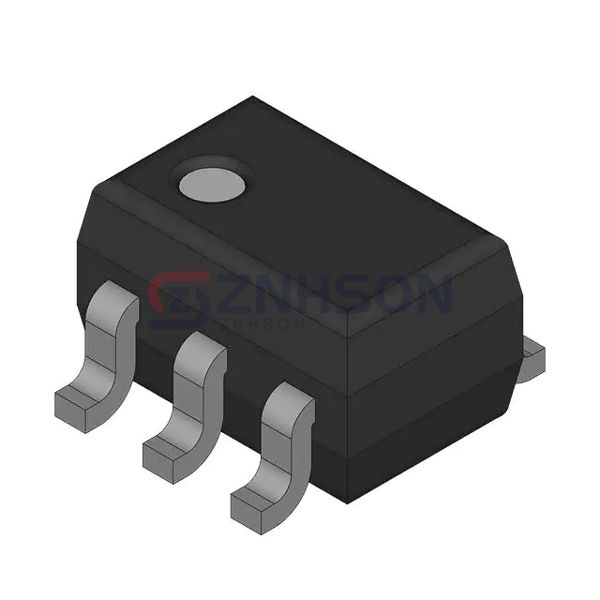

NC7S86P5
Fairchild Semiconductor
Fairchild Semiconductor
XOR GATE, HC/UH SERIES, 1 FUNC,
$0.24
Available to order
Reference Price (USD)
1,250+
$0.23460
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Fairchild Semiconductor's NC7S86P5 represents the cutting edge of Logic - Gates and Inverters technology in the ICs market. This versatile logic gate solution delivers exceptional performance in arithmetic operations, signal conditioning, and data processing. With its compact design and low power requirements, this IC is perfect for space-constrained applications like IoT devices, wearable technology, and portable medical equipment. The product features ESD protection and wide operating temperature range (-40 C to 125 C), making it suitable for harsh industrial environments. Whether you're designing robotics systems, smart home controllers, or automotive ECUs, the NC7S86P5 provides the reliable logic functions you need.
Specifications
- Product Status: Active
- Logic Type: XOR (Exclusive OR)
- Number of Circuits: 1
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 2V ~ 6V
- Current - Quiescent (Max): 1 µA
- Current - Output High, Low: 2.6mA, 2.6mA
- Logic Level - Low: 0.5V
- Logic Level - High: 1.5V
- Max Propagation Delay @ V, Max CL: 17ns @ 6V, 50pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Supplier Device Package: SC-70-5
- Package / Case: 5-TSSOP, SC-70-5, SOT-353
